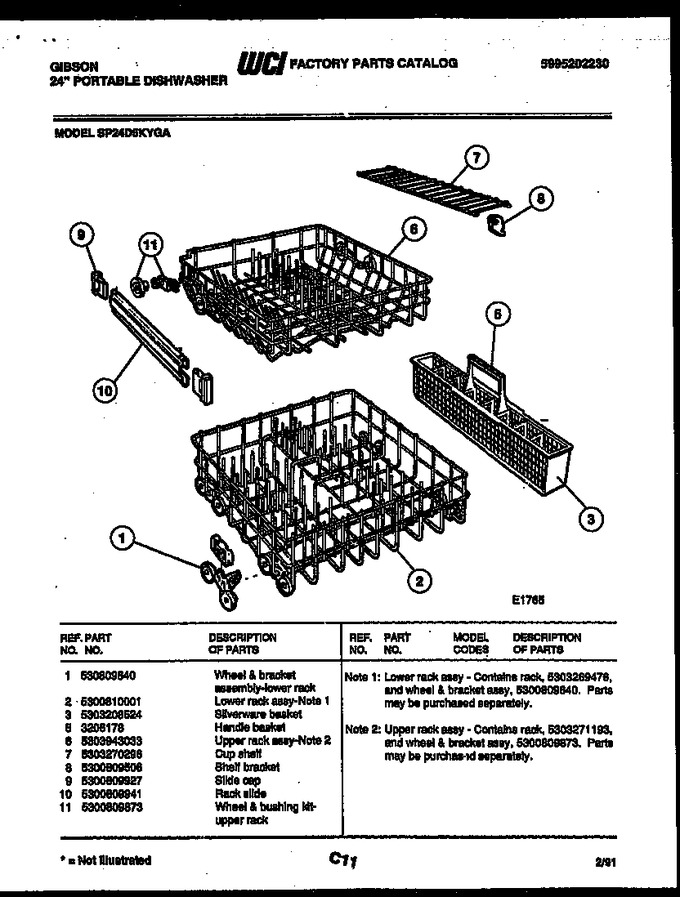

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 530809640 Wheel & Bracket Assembly-lower Rack Appelez-nous -
2 5300810001 Lower Rack Assy (contains Rack, 5303269476, And Wheel & Appelez-nous -
3 5304509753 Silverware Basket   (Replaces: 5303208524) In-Stock Immediately $ 36.87

5 3206178 Handle - Basket Appelez-nous -
6 5303943033 Upper Rack Assy (contains Rack, 5303271193, And Wheel & Appelez-nous -
7 5303270296 Cup Shelf Appelez-nous -
8 5300809506 Shelf Bracket Appelez-nous -
9 5300809927 Slide Cap In-Stock Immediately $ 3.69

10 5300809941 Rack Slide Appelez-nous -
11 5300809873 Wheel & Bushing Kit-upper Rack Special Order $ 32.80


    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for SP24D5KYGA
