SELECT A DIAGRAM

01 - Enclosure


02 - Fountain


03 - Freezer Compartment


04 - Freezer Door


05 - Freezer Shelves


06 - Hinges


07 - Ice Bin


08 - Ice Maker


09 - Machine Compartment-compressor


10 - Refrigerator Compartment


11 - Refrigerator Door


12 - Refrigerator Shelves

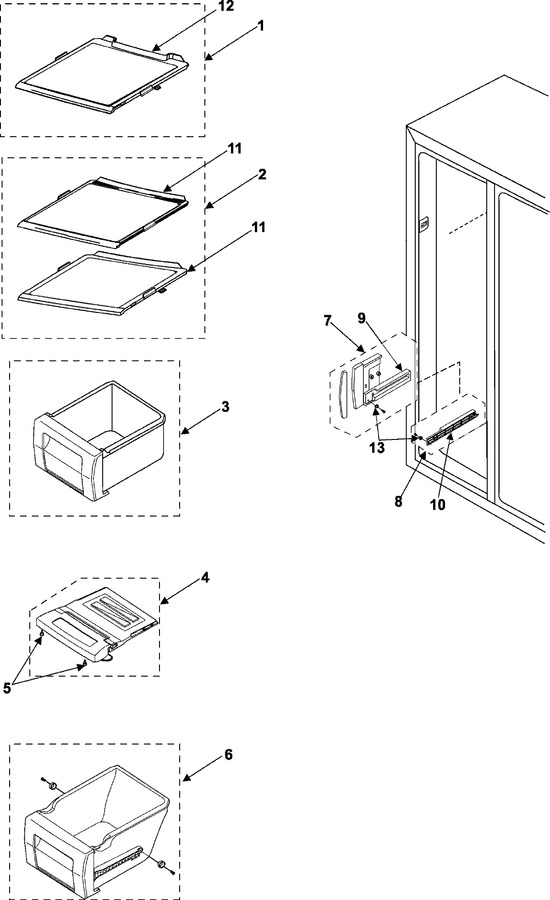

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-00157H		Assy Shelf-fre,mid(650);cool-w		Appelez-nous	-
2	DA97-00158L		Assy Shelf-low,fre(650);cool-w		Appelez-nous	-
3	DA97-01925C		Assy Case-basket Up;bby 05,710		Appelez-nous	-
4	DA97-01924B		Assy Cover-basket Silde;bby 05		Appelez-nous	-
5	DA63-40167A		Grommet-cover Chil				$ 2.50
6	DA97-02006B		Assy Cover-multi Fre,disp		Appelez-nous	-
7	DA97-00731F		Assy Rail-basket L(b-type);a-t		Appelez-nous	-
8	DA97-00730F		Assy Rail-basket R(b-type);a-t				$ 8.60
9	DA61-00292C		Rail-basket L(b-type);hips,a-t		Appelez-nous	-
10	DA61-00293C		Rail-basket R(b-type);hips,a-t		Appelez-nous	-
11	DA67-00535B		Shelf-fre Low(650);a-top,hips,		Appelez-nous	-
12	DA67-00532B		Shelf-fre Mid(650);a-top,hips,		Appelez-nous	-
NI	DA61-00292C		Rail-basket L(b-type);hips,a-t		Appelez-nous	-
NI	DA61-00293C		Rail-basket R(b-type);hips,a-t		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
