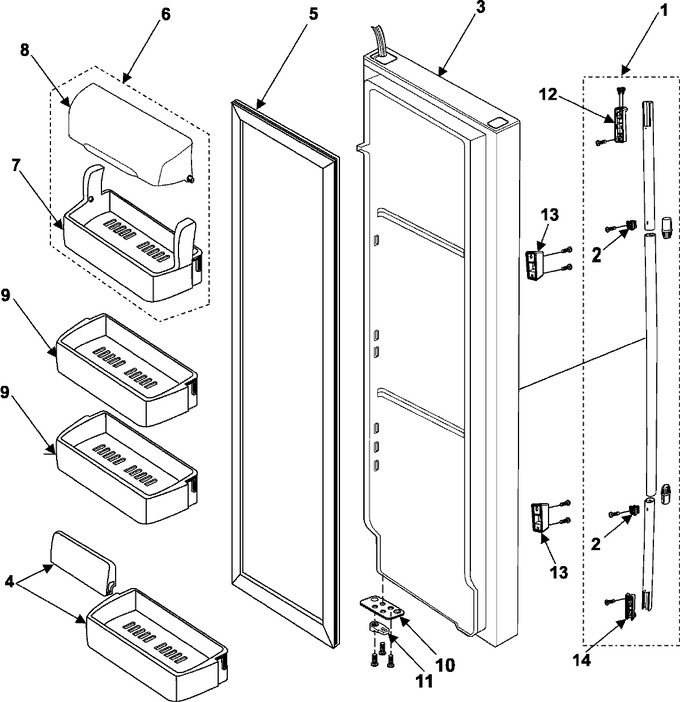

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-00727D		Assy Handle-bar				$ 118.80
2	555555		Grommet-fixer Handle   (Replaces: DA63-00789A)				$ 151.94
3	DA91-02060F		Assy Door Foam Ref;rs25,real S				$ 533.73
4	DA61-01588A		Guide Bottle;pp,best-buy 04,wh		Appelez-nous	-
6	DA97-00697E		Assy Guard-dairy(85);best-buy,		Appelez-nous	-
7	DA63-00836D		Guard-dairy(85);a-top,hips,coo				$ 74.73
8	DA63-00825B		Cover-guard Dairy		Appelez-nous	-
9	DA97-01824A		Assy Guard-ref Low(85);best-bu				$ 89.41
10	DA61-00430A		Stopper Door				$ 14.72
11	DA66-00344A		Cam-hinge Riser Low				$ 1.66
12	DA67-01238A		Cap-handle Up		Appelez-nous	-
13	DA61-00264B		Support-handle Mid;a-top,abs,-				$ 16.02
14	DA67-00796A		Cap-handle Low		Appelez-nous	-
