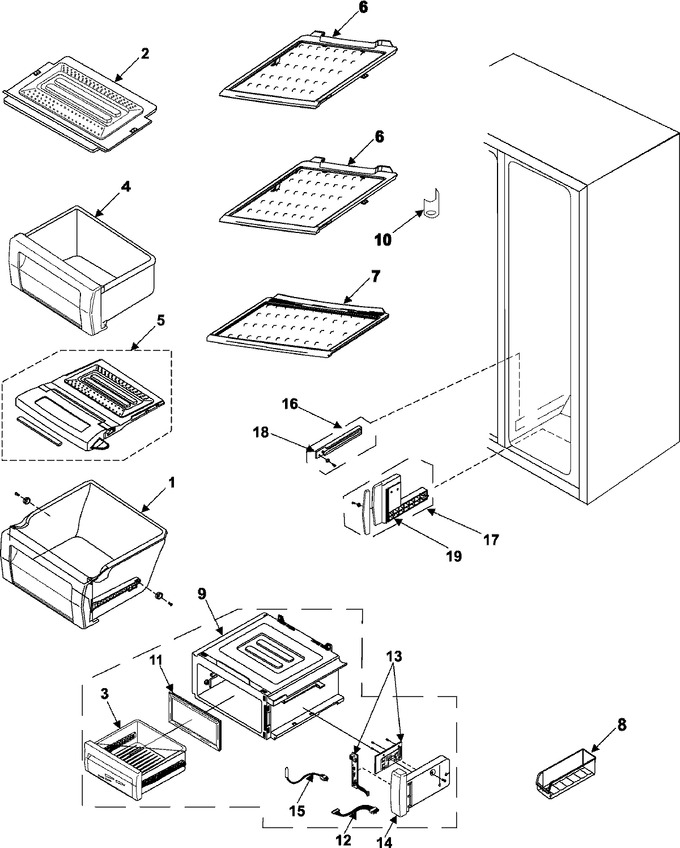

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-01899C		Assy Case-veg Low		Appelez-nous	-
2	DA63-00864C		Cover-veg Up(650);a-top,hips,c		Appelez-nous	-
3	DA97-02080C		Assy Tray-convertible;bby 05,7		Appelez-nous	-
4	DA97-01900C		Assy Case-veg Up		Appelez-nous	-
5	DA97-01901C		Assy Cover-veg Slide				$ 76.81
6	DA67-00533F		Shelf Ref-up(650);best-buy,pp,				$ 99.45
7	DA67-00687B		Shelf Ref-low(650);a-top,hips,				$ 95.32
8	DA67-40250E		Tray-utility				$ 56.08
9	DA97-02081C		Assy Case-convertible;bby 05,7		Appelez-nous	-
10	DA67-01011A		Shelf-wine;best-buy,gpps,-,-,-				$ 37.51
11	DA63-00820A		Gasket-convertible;a-top,sf-pv		Appelez-nous	-
12	555555		Sensor Assy   (Replaces: DA32-00006B)				$ 151.94
13	DA41-00290A		Pba Display-(c-room);a-top Bby		Appelez-nous	-
14	DA63-02056B		Cover-control Convertible;usp,		Appelez-nous	-
15	DA32-10109X		Sensor Assy				$ 25.99
16	DA97-01902A		Assy Rail-low,ref L;usp-pjt,co		Appelez-nous	-
17	DA97-01903A		Assy Rail-low,ref R;usp-pjt,co		Appelez-nous	-
18	DA61-01695A		Rail-ref Low,l;usp,abs,-,-,-,c		Appelez-nous	-
19	DA61-01696A		Rail-ref Low,r;usp,abs,-,-,-,c		Appelez-nous	-
