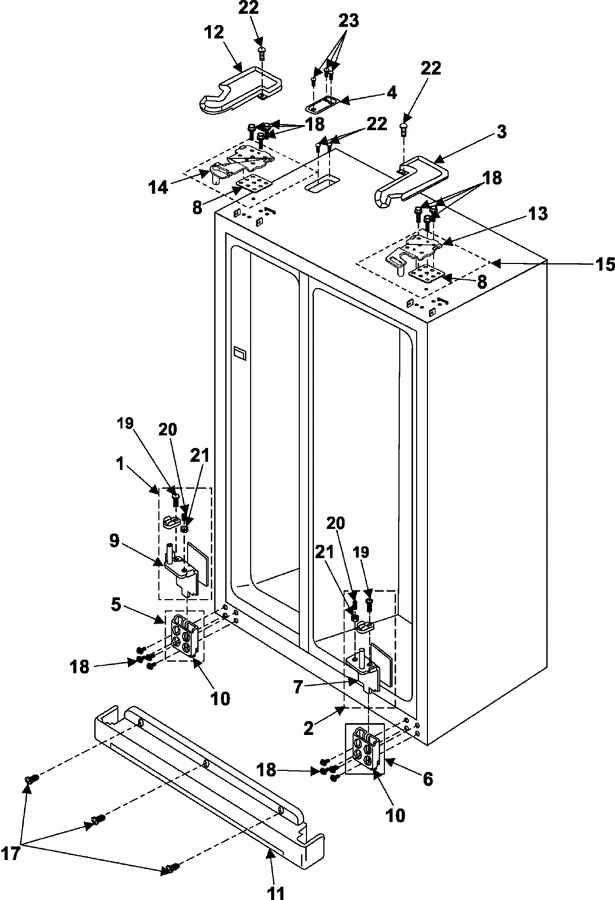

1	DA97-01760G		Assy Hinge Low-l				$ 54.87
2	DA97-01763D		Assy Hinge Low-r		Appelez-nous	-
3	DA63-02261E		Cover Hinge-up (lt)		Appelez-nous	-
4	DA63-02262E		Cover Hinge-up (rt)		Appelez-nous	-
5	DA97-02243B		Assy Bracket-hinge Low L		Appelez-nous	-
6	DA97-02244B		Assy Bracket-hinge Low R		Appelez-nous	-
7	DA61-01608B		Hinge-low R				$ 47.05
8	DA63-50192A		Shim-hinge Upp;abs,left				$ 2.39
9	DA61-01607C		Hinge-low L		Appelez-nous	-
10	DA61-00419D		Bracket Hinge-low;85mm,a-top,s		Appelez-nous	-
11	DA63-00822R		Cover Leg-front;a-top,pp,-,-,-		Appelez-nous	-
12	DA61-01911D		Hinge-upp L		Appelez-nous	-
13	DA61-01912D		Hinge-upp R		Appelez-nous	-
14	DA97-02337D		Assy Hinge Upp-l(85);a-top Usp		Appelez-nous	-
15	DA97-02338D		Assy Hinge Upp-r		Appelez-nous	-
17	6002-001341		Screw-tapping;bh,+,1,m4,l16,da				$ 0.85
18	6009-001255		Screw-hex		Appelez-nous	-
19	6003-001435		Screw-taptite		Appelez-nous	-
20	6011-001442		Bolt-socket				$ 2.50
21	6021-001125		Nut-hexagon				$ 3.94
22	6002-001335		Screw-tapping;bh,+,1,m4,l12,da		Appelez-nous	-
23	6002-001204		Screw-tapping				$ 0.85
NI	DA63-01275A		Cover-tube Water		Appelez-nous	-
