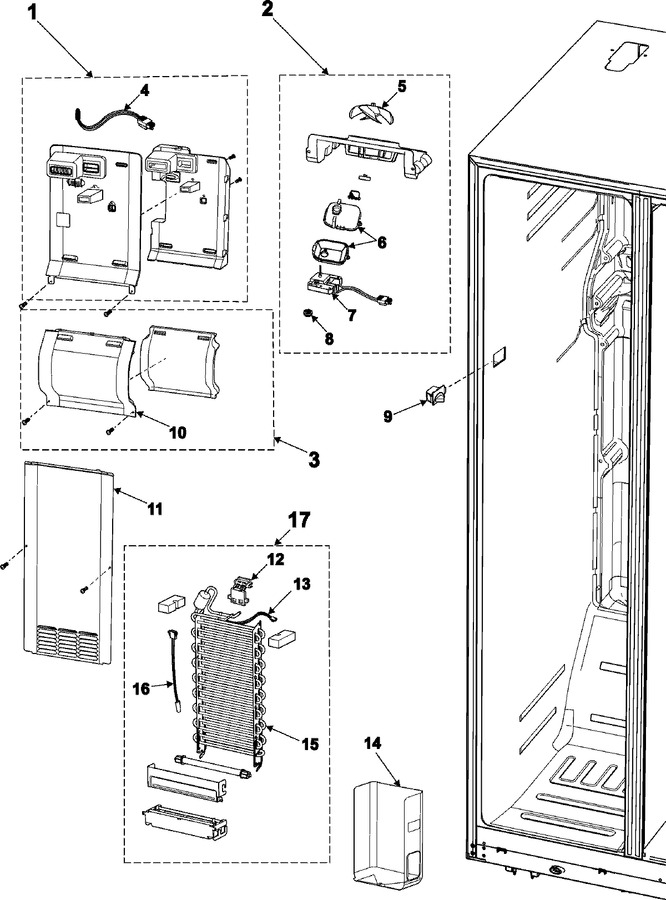

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DA97-02045A | Assy Cover-multi Fre;ad,pp,-,- |
|
$ 73.77 | |||||
| 2 | 555555 | Assy Support-motor Fre;ad,-,-, (Replaces: DA97-01948A) |
|
$ 151.94 | |||||
| 3 | DA97-02055A | Assy Cover-supt Motor Fre;ad,p |
|
$ 39.15 | |||||
| 4 | DA32-00006D | Sensor Temp-f Def Sensor;px-41 |
|
Immediately | $ 39.74 | ||||
| 5 | DA31-00015C | Fan-turbo |
|
$ 12.12 | |||||
| 6 | DA63-01283C | Cover-motor;ad,pp(fh21),ntr,-, |
|
$ 8.47 | |||||
| 7 | DA31-00103A | Motor Fan-ac;-,is27210scd6a,-, |
|
$ 117.59 | |||||
| 8 | DA63-40119A | Grommet-motor |
|
Immediately | $ 2.50 | ||||
| 9 | DA34-10120E | Switch Door-f;-,slide,-,-,250v |
|
Immediately | $ 39.74 | ||||
| 10 | DA63-01283C | Cover-motor;ad,pp(fh21),ntr,-, |
|
$ 8.47 | |||||
| 11 | DA97-02056B | Assy Cover Evap-front |
|
$ 112.47 | |||||
| 12 | DA61-00603A | Fixer-sensor |
|
$ 3.23 | |||||
| 13 | DA47-10160F | Thermo Bimetal;ad-pjt,-,250v,1 |
|
$ 87.83 | |||||
| 14 | Y00000000 | See Note Drain Plate-fre Currently Not Available |
|
- | |||||
| 15 | DA59-00314A | Evap Fre;-,fin,a1100p-h24,-,11 |
|
$ 143.05 | |||||
| 16 | DA32-00006D | Sensor Temp-f Def Sensor;px-41 |
|
Immediately | $ 39.74 | ||||
| 17 | Y00000000 | See Note Assy Evap-fre Currently Not Available - Includes Seal-evapfre(2), Cover-heater Sub, Cover-heater, Heater-glass |
|
- |
