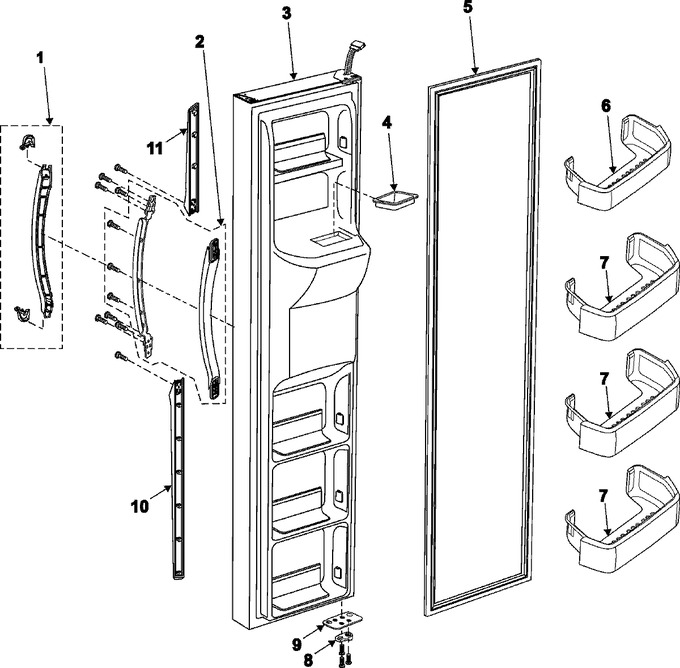

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-02247B		Assy Handle;ad		Appelez-nous	-
2	Y00000000		See Note Handle-mid Front Currently Unavailable Includes: Reinf-handle Mid, Handle-mid		Appelez-nous	-
3	DA91-01960H		Assy Door Foam Fre		Appelez-nous	-
4	DA67-00513B		Cap-chute Ice(85);a-top,cool-w		Appelez-nous	-
5	DA97-01800M		Assy-gasket Door Fre;ad-pjt,-,		Appelez-nous	-
6	DA63-02002A		Guard Fre-upp				$ 19.14
7	DA63-01996A		Guard, Freezer (lwr)		Appelez-nous	-
8	DA66-00268A		Cam-riser;usp-pjt,low Hinge,10				$ 3.23
9	DA61-00430A		Stopper Door				$ 14.72
10	Y00000000		See Note Handle-trim Low Currently Unavailable		Appelez-nous	-
11	Y00000000		See Note Handle-trim Upp Currently Unavailable		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
