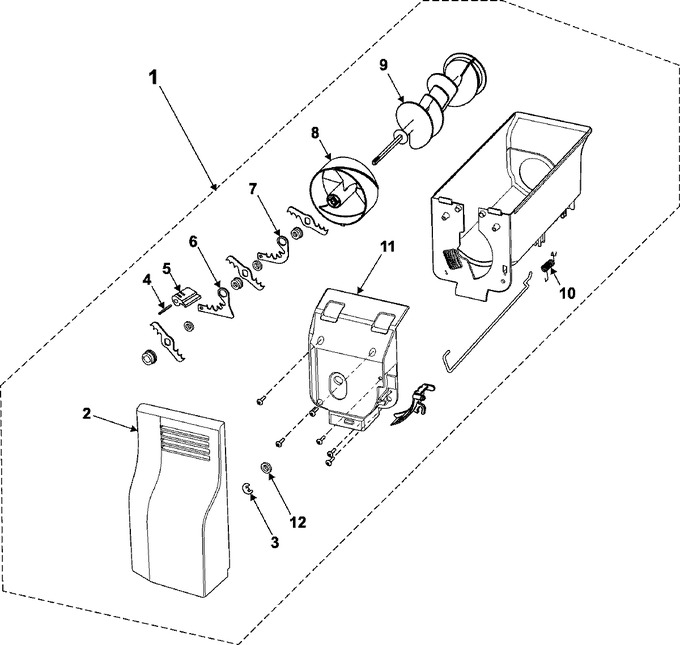

1	DA97-02058C		Assy Tray-ice Bucket;ad,pc,-,-				$ 124.42
2	DA63-02008A		Cover-ice Bucket;ad,hips,t2.5,				$ 59.20
3	DA60-90125A		Ring		Appelez-nous	-
4	DA60-90136A		Pin-spiral		Appelez-nous	-
5	DA71-20231A		Fixer-guard		Appelez-nous	-
6	DA31-20121B		Blade-stationary Disp,out		Appelez-nous	-
7	DA31-20122B		Blade-stationary Disp,in		Appelez-nous	-
8	DA61-01658C		Blade-ice;ad,pc,trp,-,-		Appelez-nous	-
9	DA65-00037A		Clamper Core-helix;ad,pom,-,-,		Appelez-nous	-
10	DA61-20124C		Spring Etc-dispenser;ad,sts304		Appelez-nous	-
11	DA63-02007A		Cover-crusher;ad,hips,t3.3,-,-		Appelez-nous	-
12	DA60-40116A		Washer-plain				$ 1.66

    View Diagram in Separate Window       Print Part List
