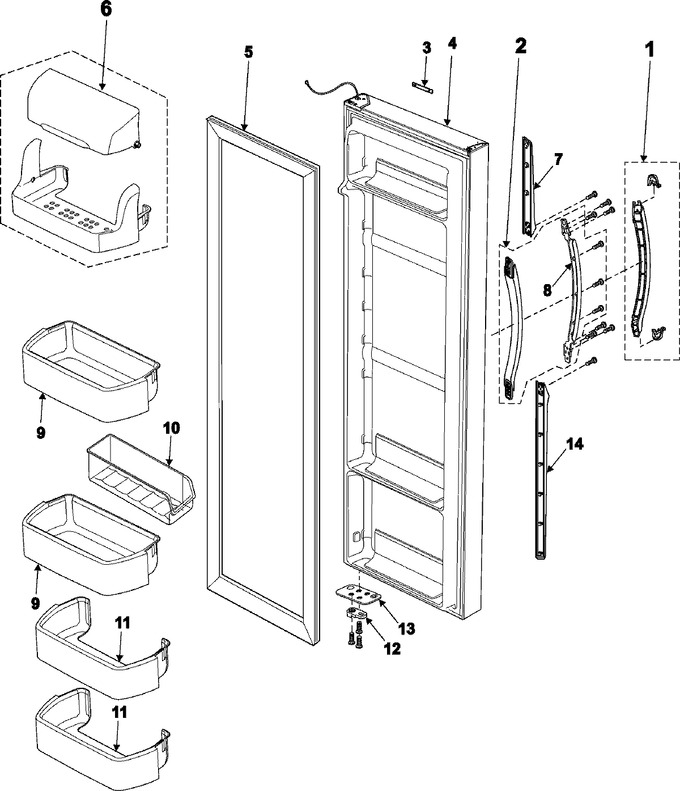

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-02247B		Assy Handle;ad		Appelez-nous	-
2	Y00000000		See Note Fixer-handle Currently Unavailable. Includes: Handle-mid Rear		Appelez-nous	-
3	DA64-00990A		Mascot;-,al,-,-,-,-,-,-		Appelez-nous	-
4	DA91-01961H		Assy Door Foam Ref		Appelez-nous	-
5	DA97-01800N		Assy-gasket Door Ref;ad-pjt,-,				$ 181.70
6	DA97-02041A		Assy Guard-dairy				$ 76.09
7	Y00000000		See Note Handle-trim Upp Currently Unavailable		Appelez-nous	-
8	DA61-00309A		Reinf-handle Mid		Appelez-nous	-
9	DA63-02001A		Guard Ref-mid				$ 53.72
10	DA67-40250E		Tray-utility				$ 56.08
11	DA63-02014A		Guard Ref-low				$ 36.13
12	DA66-00268A		Cam-riser;usp-pjt,low Hinge,10				$ 3.23
13	DA61-00430A		Stopper Door				$ 14.72
14	Y00000000		See Note Handle-trim Low Currently Unavailable		Appelez-nous	-
