02 - Cabinet Parts

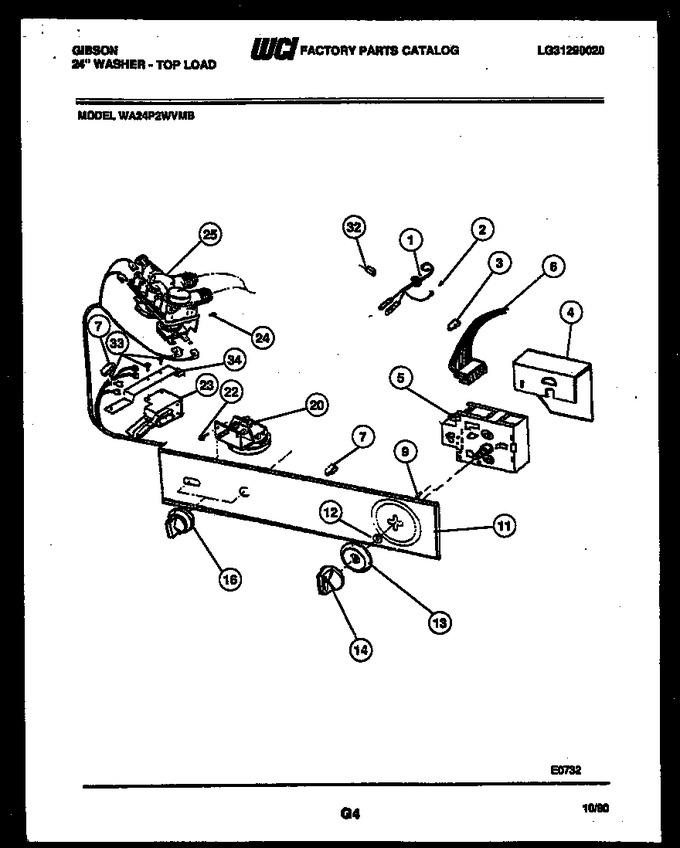

03 - Console And Control Parts


04 - Drain, Recirculate Parts


05 - Tub And Water Inlet


06 - Transmission Parts


07 - Portable Washer Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3205929		Service Cord		Appelez-nous	-
2	F131225-000		Screw-ground		Appelez-nous	-
3	F002751-000		Clip-harness		Appelez-nous	-
4	3205931		Shield-timer		Appelez-nous	-
5	3015652		Timer		Appelez-nous	-
6	5303210630		Harness		Appelez-nous	-
7	F131347-000		Clip-harness (9)		Appelez-nous	-
9	F060796-000		Screw (2)		Appelez-nous	-
11	F140599-000		Trimplate Assembly		Appelez-nous	-
12	F078212-200		Spacer-timer		Appelez-nous	-
13	F141024-000		Pointer-timer		Appelez-nous	-
14	F141025-000		Knob, Timer		Appelez-nous	-
16	F078949-000		Knob - Rotary		Appelez-nous	-
20	5303210632		Switch - Pressure		Appelez-nous	-
22	F062942-000		Sems Screw (2)		Appelez-nous	-
23	3017110		Lid Lock & Switch Assembly		Appelez-nous	-
24	5303010202		Sems Screw (2)				$ 5.15
25	F076138-015		Coil & Bracket Assy (2) (part Of Ref. 25, But May Be Ord		Appelez-nous	-
25	F133048-000		Water Valve		Appelez-nous	-
25	F076138-011		Screen (2) (part Of Ref. 25, But May Be Ordered Separate		Appelez-nous	-
32	F077094-000		Clip - Service Cord/support		Appelez-nous	-
33	F130439-000		Screw-bracket/side Panel (2)		Appelez-nous	-
33	F137749-000		Screw - Lid Lock Mounting (2)		Appelez-nous	-
34	3018393		Bracket - Lid Lock & Switch Assembly		Appelez-nous	-
*30826	3205935		U-clip (2) Shield To Side		Appelez-nous	-
*30826	3205933		Shield-pressure Switch		Appelez-nous	-
*30826	F075803-000		Screw - Cord Hanger/back Panel		Appelez-nous	-
*30826	F079865-000		Cord Hanger		Appelez-nous	-
*30826	08011251		Screw (4) Shield To Top		Appelez-nous	-
