02 - Cabinet Parts


03 - Console And Control Parts


04 - Drain, Recirculate Parts


05 - Tub And Water Inlet


06 - Transmission Parts


07 - Portable Washer Components

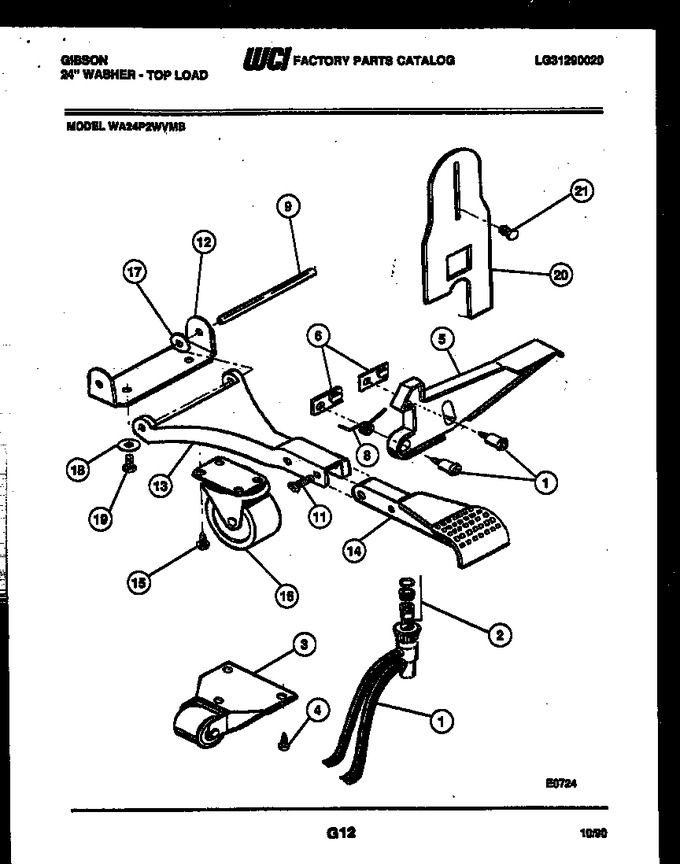

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3204664		Hose Assembly		Appelez-nous	-
2	F132503-200		Kit, Hose Fit Hardware		Appelez-nous	-
3	F131445-100		Front Casters Assembly (2)		Appelez-nous	-
4	F075803-000		Screw - Caster Assembly/base (2)		Appelez-nous	-
4	F064337-000		Screw - Caster Assembly/base (4)		Appelez-nous	-
5	F141071-000		Pedal, Release/catch		Appelez-nous	-
6	F141076-000		Speednut (2)		Appelez-nous	-
7	F141065-000		Shoulder Screw (2)		Appelez-nous	-
8	F141066-000		Spring-retractable		Appelez-nous	-
9	F141060-000		Rolled Spring Pin		Appelez-nous	-
11	F141062-000		Screw		Appelez-nous	-
12	F141064-000		Bracket		Appelez-nous	-
13	F141067-100		Pedal, Caster		Appelez-nous	-
14	F141068-100		Pedal, Extension		Appelez-nous	-
15	F141063-000		Screw (4)		Appelez-nous	-
16	F141069-000		Caster Assembly		Appelez-nous	-
17	F140083-000		Spring Washer		Appelez-nous	-
18	F079874-000		Washer (2)		Appelez-nous	-
19	F132459-000		Screw (2)		Appelez-nous	-
20	F141233-000		Shield		Appelez-nous	-
21	F141234-000		Clip		Appelez-nous	-
1A	3018542		Clamp-hose Assembly/tub (non-illustrated)		Appelez-nous	-
1A	F136152-000		Clamp - Hose Assembly/tub (non-illustrated)		Appelez-nous	-
1B	F140073-000		Screw - Clamps/tub (2) (non-illustrated)		Appelez-nous	-
1C	F078029-000		Speed Nut (2) (non-illustrated)		Appelez-nous	-
