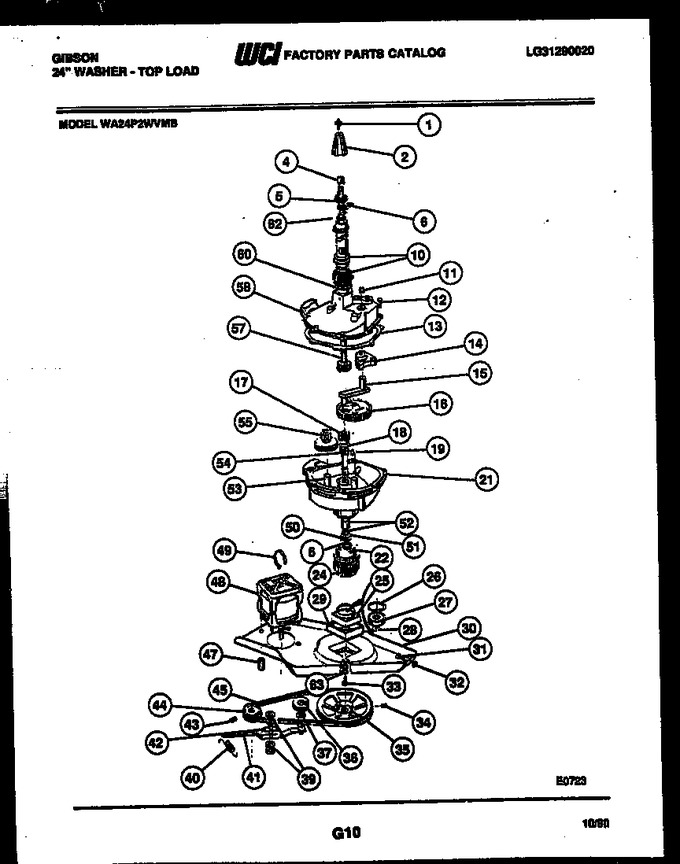

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Console And Control Parts
04 - Drain, Recirculate Parts
05 - Tub And Water Inlet
06 - Transmission Parts
07 - Portable Washer Components
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | F063882-000 | Stud Bolt |
|
- | |||||
| 2 | F140465-000 | Drive Lug |
|
- | |||||
| 4 | F063881-400 | Shim (as Required) |
|
- | |||||
| 5 | F130866-000 | Seal-upper Lip |
|
- | |||||
| 6 | F068158-000 | Snap Ring ( 2 ) |
|
- | |||||
| 10 | F079420-000 | Seal Kit |
|
- | |||||
| 11 | F077961-000 | Pipe Plug |
|
- | |||||
| 12 | F079688-000 | Screw ( 6 ) |
|
- | |||||
| 13 | F130895-000 | Gasket |
|
- | |||||
| 14 | F130405-100 | Gear-sector |
|
- | |||||
| 15 | F066078-100 | Rod-connecting |
|
- | |||||
| 16 | F130404-100 | Gear-crank |
|
- | |||||
| 17 | F141770-000 | Shaft-lower |
|
- | |||||
| 18 | F077051-000 | Thrust Washer |
|
- | |||||
| 19 | F077058-000 | Dowel Pin (2) |
|
- | |||||
| 21 | F140586-000 | Housing Assembly - Lower |
|
- | |||||
| 22 | F140586-000 | Housing Assembly - Lower |
|
- | |||||
| 24 | F130417-000 | Sleeve-clutch Coil |
|
- | |||||
| 25 | F130417-000 | Sleeve-clutch Coil |
|
- | |||||
| 26 | F130417-000 | Sleeve-clutch Coil |
|
- | |||||
| 27 | F130417-000 | Sleeve-clutch Coil |
|
- | |||||
| 28 | F141261-000 | Snap Ring |
|
- | |||||
| 29 | F077009-100 | Cushion |
|
- | |||||
| 30 | F132770-028 | Plate-support |
|
- | |||||
| 31 | F077090-000 | Screw ( 3 ) |
|
- | |||||
| 32 | F073804-000 | Locknut ( 3 ) |
|
- | |||||
| 33 | F078749-000 | Spacer-rubber (2) |
|
- | |||||
| 33 | F142220-000 | Screw (2) |
|
- | |||||
| 34 | F141729-000 | Set Screw |
|
- | |||||
| 35 | F140999-100 | Pulley-transmission |
|
- | |||||
| 36 | F130879-000 | V-pulley |
|
- | |||||
| 37 | F140083-000 | Spring Washer |
|
- | |||||
| 39 | F142027-000 | Bushing (2) |
|
- | |||||
| 40 | F078914-000 | Spring |
|
- | |||||
| 41 | F141786-000 | Idler Arm & Shaft Assembly |
|
- | |||||
| 42 | F141131-000 | Spacer |
|
- | |||||
| 43 | F132861-000 | Set Screw |
|
- | |||||
| 44 | 134881-000 | Pulley - Motor |
|
- | |||||
| 45 | F133171-000 | V-belt |
|
- | |||||
| 47 | F141131-000 | Spacer (3) |
|
- | |||||
| 48 | F140322-000 | Motor |
|
- | |||||
| 48 | F067630-015 | Switch-motor |
|
- | |||||
| 49 | F130495-100 | Tie-harness |
|
- | |||||
| 50 | F077098-000 | Spacer Washer |
|
- | |||||
| 51 | F077051-000 | Thrust Washer |
|
- | |||||
| 52 | F077062-000 | Seal-lower Lip |
|
- | |||||
| 53 | 5303208460 | Oil-transmission (1 Qt.) |
|
- | |||||
| 54 | F077052-000 | Lgs Spring-small |
|
- | |||||
| 55 | F130403-100 | Gear-idler |
|
- | |||||
| 57 | F141133-000 | Shaft Assembly - Agitator |
|
- | |||||
| 58 | F140588-000 | Housing Assembly - Upper |
|
- | |||||
| 60 | F077156-000 | Slinger |
|
- | |||||
| 62 | F062568-000 | Thrust Washer |
|
- | |||||
| 63 | 5303207426 | Spacer - Rubber |
|
$ 9.21 | |||||
| *30843 | 5303208459 | Complete Transmission |
|
- |
