View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

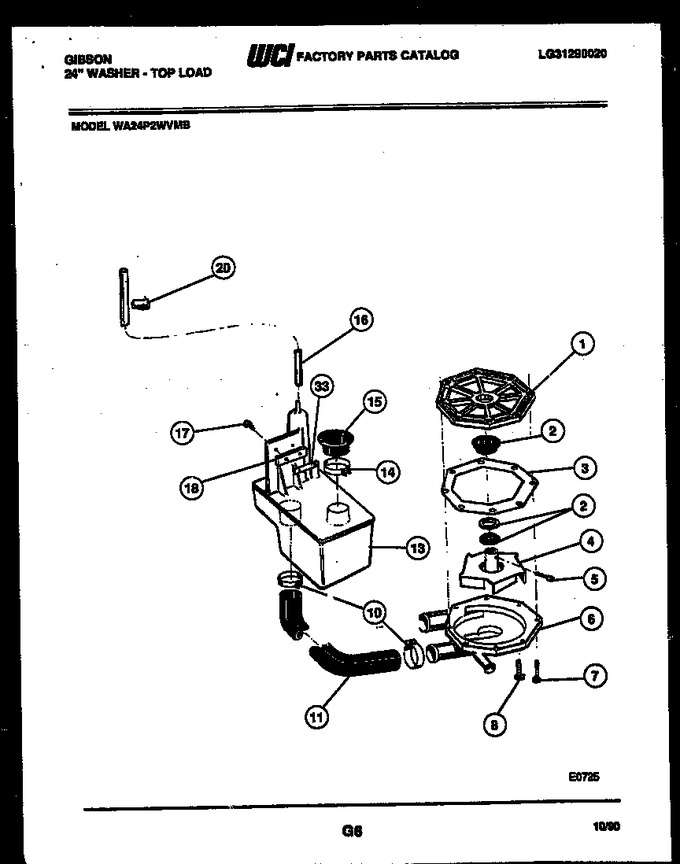

02 - Cabinet Parts
03 - Console And Control Parts
04 - Drain, Recirculate Parts
05 - Tub And Water Inlet
06 - Transmission Parts
07 - Portable Washer Components
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | F077352-000 | Cover, Pump |
|
- | |||||
| 2 | F076143-000 | Seal Kit (consists Of Seal Assembly & Gasket) |
|
- | |||||
| 3 | F077354-000 | Gasket |
|
- | |||||
| 4 | F079428-000 | Impeller Kit (consists Of Seal Assembly, Gasket, Impelle |
|
- | |||||
| 5 | F077203-000 | Screw-impeller |
|
- | |||||
| 6 | F141874-100 | Housing-pump |
|
- | |||||
| 7 | F078716-000 | Screw (4) |
|
- | |||||
| 8 | F077669-000 | Screw (4) |
|
- | |||||
| 10 | F140887-027 | Clamp-hose (4) |
|
- | |||||
| 11 | F139191-000 | Hose |
|
- | |||||
| 13 | 5303206795 | Button Trap |
|
- | |||||
| 14 | F064154-020 | Clamp-hose |
|
- | |||||
| 15 | F137466-000 | Grommet |
|
- | |||||
| 16 | F077199-002 | Hose-pressure |
|
- | |||||
| 17 | F136471-000 | Screw (2) |
|
- | |||||
| 18 | F140324-000 | Shim |
|
- | |||||
| 20 | F002751-000 | Speed-clip (2) |
|
- | |||||
| 33 | F139592-000 | Speed Nut |
|
- | |||||
| *30832 | F133058-100 | Complete Pump Assembly |
|
- | |||||
| 15A | F062805-100 | Adhesive (1 Oz.) (non-illustrated) |
|
- |
