SELECT A DIAGRAM

01 - Cover

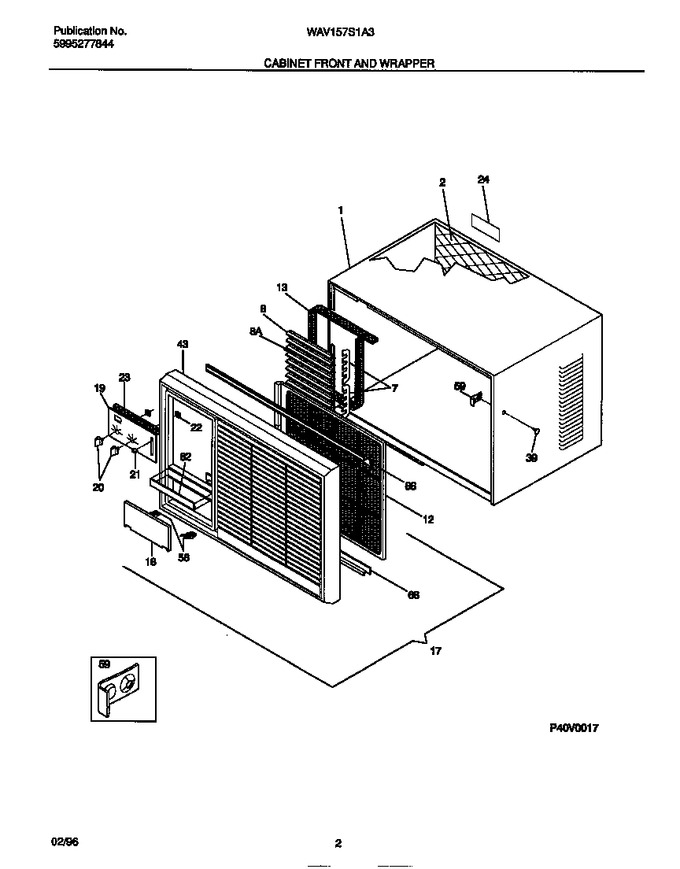

02 - Cabinet Front And Wrapper


03 - Control Parts


04 - Air Handling Parts


05 - Compressor Parts


06 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303303545		Wrapper		Appelez-nous	-
2	5303210207		Panel - Rear		Appelez-nous	-
7	5303202811		Link-louvers		Appelez-nous	-
8	5303201851		Louver, W/handle, (2)		Appelez-nous	-
8	5303201850		Louver		Appelez-nous	-
12	5303317809		Filter		Appelez-nous	-
13	5303201854		Seal-front		Appelez-nous	-
17	5303300227		Front-complete		Appelez-nous	-
18	5303300228		Door		Appelez-nous	-
19	309612709		Dial Plate		Appelez-nous	-
20	5300331902		Knob Control		Appelez-nous	-
21	5303002189		Knob-slide		Appelez-nous	-
22	5303001775		Spacer - Dial Plate		Appelez-nous	-
23	3201953		Seal-dial Plate		Appelez-nous	-
39	5303271346		Screw, Truss Head, 8-18ab X 0.75		Appelez-nous	-
58	5303017980		Hinge - Door		Appelez-nous	-
59	08010928		Nut - Front Lock		Appelez-nous	-
62	5303300229		Insert-front		Appelez-nous	-
66	5303272800		Rail, Filter		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
