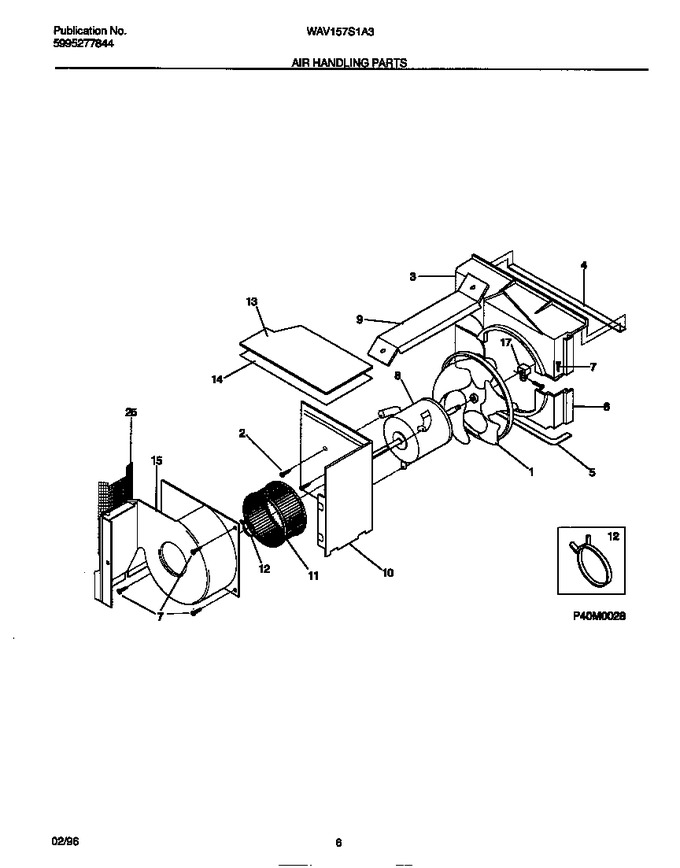

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303311048		Fan Blade & Clamp		Appelez-nous	-
2	3202975		Screw, Truss Head, 10-16 X 0.72, Square Drive		Appelez-nous	-
3	5303015305		Shroud - Upper		Appelez-nous	-
4	3016696		Seal - Shroud Upper		Appelez-nous	-
5	5303015311		Seal - Scroll, Shroud		Appelez-nous	-
6	5303015304		Shroud - Lower		Appelez-nous	-
7	3015312		Screw, Truss Head, 8-18 X 0.47, Square Drive		Appelez-nous	-
8	5303317609		Motor-fan, 3 Sp, 60, 115		Appelez-nous	-
9	5303015306		Bracket - Shroud		Appelez-nous	-
10	5303299319		Bulkhead		Appelez-nous	-
11	5303016832		Blower Wheel		Appelez-nous	-
12	5303012110		Clamp - Blower Wheel				$ 8.14
13	5303015313		Cover - Top		Appelez-nous	-
14	3201832		Insulation-cover		Appelez-nous	-
15	5303201831		Scroll		Appelez-nous	-
17	5308011040		Clamp - Fan Blade		Appelez-nous	-
25	5303302933		Screen		Appelez-nous	-
