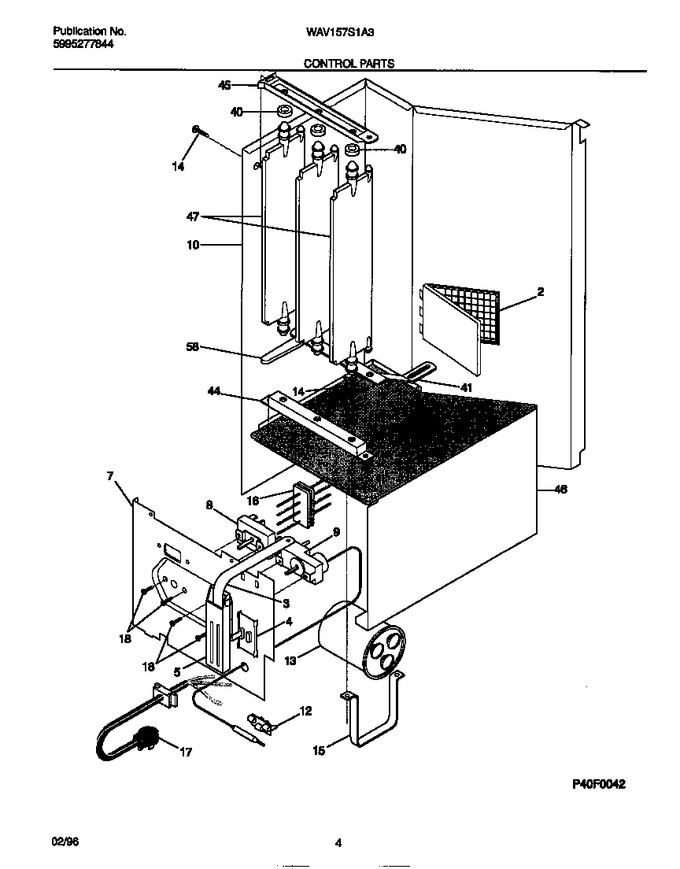

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303295752		Door-vent		Appelez-nous	-
3	5303201820		Strap,vent Door		Appelez-nous	-
4	5303201821		Actuator, Door		Appelez-nous	-
5	5303209200		Retainer-actuator		Appelez-nous	-
7	5303300231		Panel-control		Appelez-nous	-
8	5303201836		Switch-selector		Appelez-nous	-
9	5303201838		Control-temperature		Appelez-nous	-
10	5303296868		Bulkhead		Appelez-nous	-
12	5303211009		Clip-control Bulb		Appelez-nous	-
13	5303317597		Capacitor, 370 V, 30 + 10		Appelez-nous	-
14	5303015427		Screw, Truss Head, 8-18ab X 0.47, Square Drive		Appelez-nous	-
15	3202396		Strap-capacitor		Appelez-nous	-
16	5303017345		Harness		Appelez-nous	-
17	5303301021		Cord-electric Power		Appelez-nous	-
18	5303007754		Screw		Appelez-nous	-
40	3202810		Spacer-louvers, (5)		Appelez-nous	-
41	5300517130		Link-louvers Vertical		Appelez-nous	-
44	5303201843		Retainer-louver Btm.		Appelez-nous	-
45	5303201847		Retainer-louver Top.		Appelez-nous	-
46	5303300232		Cover		Appelez-nous	-
47	5303299318		Louver-vertical (2)		Appelez-nous	-
58	5303300230		Louver W/handle		Appelez-nous	-
