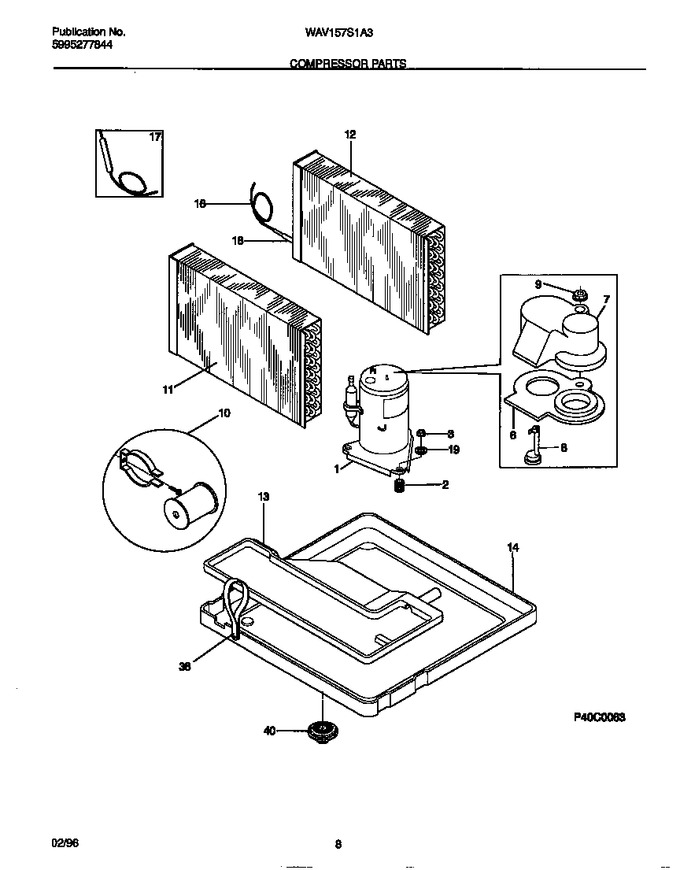

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303317608 | Compressor |
|
- | |||||
| 2 | 5303283877 | Grommet-compressor |
|
- | |||||
| 3 | 5308006948 | Nut - Compressor |
|
- | |||||
| 6 | 3201668 | Gasket-cover |
|
- | |||||
| 7 | 3201669 | Cover-terminal |
|
- | |||||
| 8 | 5303317603 | Overload Protector |
|
- | |||||
| 9 | 3201670 | Nut, Cover Mounting |
|
- | |||||
| 10 | 5303317601 | Start Assist Kit,compressor |
|
$ 148.05 | |||||
| 11 | 5303317606 | Evaporator |
|
- | |||||
| 12 | 5303317612 | Condenser |
|
- | |||||
| 13 | 5303208221 | Tray-evaporator |
|
- | |||||
| 14 | 5303317614 | Base |
|
- | |||||
| 16 | 5303317653 | Capillary Tube, Cut-to-size |
|
- | |||||
| 17 | 5300265301 | Drier-filter |
|
$ 284.30 | |||||
| 18 | 5303290357 | Strainer |
|
- | |||||
| 19 | 5303002664 | Washer - Compressor |
|
- | |||||
| 36 | 5303303558 | Strap - Base |
|
- |
