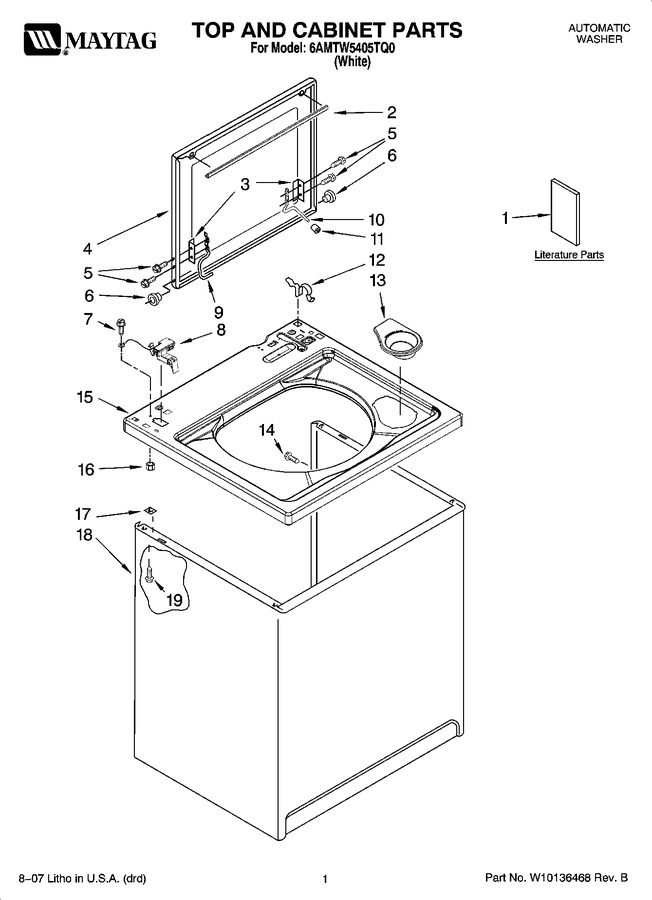

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10114752		Energy Guide		Appelez-nous	-
1	W10117865		Feature Sheet		Appelez-nous	-
1	W10117866		Use & Care Guide		Appelez-nous	-
1	W10155500		Wiring Diagram		Appelez-nous	-
2	8054939		Seal, Lid				$ 50.57
3	WP21097		Pad, Lid Hinge (2)   (Replaces: 21097)				$ 7.02
4	W10171569		Lid		Appelez-nous	-
5	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: W10119828)			Immediately	$ 6.47
6	8319539		Bearing, Lid Hinge (2)				$ 5.51
7	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.26
8	WP8318084		Switch, Lid   (Replaces: 8318084)			Immediately	$ 35.84
9	8559336		Hinge, Lid (l.h.)		Appelez-nous	-
11	19119		Bumper, Lid Hinge				$ 5.75
13	8565967		Dispenser, Bleach		Appelez-nous	-
14	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.08
15	8543479		Top		Appelez-nous	-
16	W10080180		Nut, Hex   (Replaces: 8533959)				$ 12.13
18	63424		Cabinet   (Replaces: 3950968)				$ 333.02
19	WP3390631		Screw 10-16 X 3/8 (4)   (Replaces: 3390631)				$ 7.04
