SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts

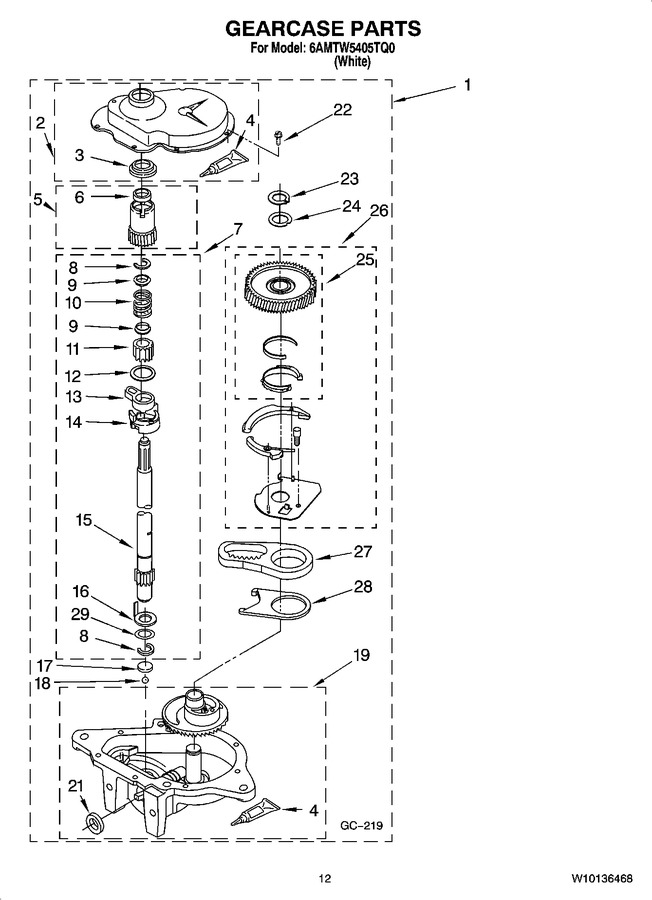

08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	285202		Cover, Gearcase		Appelez-nous	-
3	WP3349985		Seal, Gearcase Cover   (Replaces: 3349985)			Immediately	$ 23.59
4	WP285195		Sealer, Gasket (.20 Fl. Oz.) (6 Ml)   (Replaces: 285195)				$ 93.95
5	3360629		Pinion, Spin (includes Illus. 25)   (Replaces: 63320)			Immediately	$ 422.22
6	WP356427		Seal, Spin Pinion   (Replaces: 356427)			Immediately	$ 6.47
7	WP389387		Shaft, Agitator (complete)   (Replaces: 389387)				$ 242.73
8	90369		Ring, Retaining (2)				$ 5.04
10	62676		Spring, Agitate				$ 56.99
11	WP389387		Gear, Agitate (includes 15 & 29)   (Replaces: 63273)				$ 242.73
12	62619		Washer, Agitate Gear				$ 12.11
13	WP389387		Cam Follower (includes 14)   (Replaces: 62580)				$ 242.73
14	WP389387		Cam, Agitate (includes 13)   (Replaces: 62581)				$ 242.73
15	WP389387		Shaft, Agitator (includes 11 & 29)   (Replaces: 285509)				$ 242.73
16	62618		Washer, Cam Thrust		Appelez-nous	-
17	285205		Bearing, Thrust (includes 18)   (Replaces: 16018)				$ 6.77
18	285205		Ball, Bearing (includes 17)   (Replaces: 85529)				$ 6.77
19	3363395		Bottom And Pinion Gearcase   (Replaces: 3366851)				$ 390.36
21	285352		Seal, Thrust Plug			Immediately	$ 38.03
22	WP3351614		Screw, Gearcase Cover, Mounting (8) (10-24 X 3/8)   (Replaces: 3351614)			Immediately	$ 6.26
23	3362552		Ring, Retaining		Appelez-nous	-
24	285735		Washer Kit, Thrust		Appelez-nous	-
25	WPW10233584		Gear, Spin   (Replaces: 3348567)				$ 218.62
26	388253A		Neutral Assembly   (Replaces: 285595)			Immediately	$ 52.86
27	3360629		Rack, Connecting   (Replaces: 3349296)			Immediately	$ 422.22
28	3360629		Actuator, Shift   (Replaces: 62621)			Immediately	$ 422.22
29	WP388815		Washer, Intermediate   (Replaces: 388815)				$ 7.02
NI	40922		Drain Hose Extension Kit   (Replaces: 280131)				$ 58.09
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 11.07
NI	350938		Paint, Pressurized Spray (12 Oz.) (primer, Gray)		Appelez-nous	-
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 34.39
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
NI	8190981		Seal, Foam (2) 1/8 X 1/2 X 33``				$ 27.42
NI	350572		Oil, Gearcase (16 Oz.)			Immediately	$ 82.45
NI	285208		Lubricant (use Only In Brake Shoe Assembly On Roller And Pin)				$ 41.86
NI	67004839		Energy Tag		Appelez-nous	-
NI	367031		Drain Protector		Appelez-nous	-
NI	280129A		Siphon Break Kit   (Replaces: 280129)				$ 100.54
NI	280130		Drain Hose Adapter Kit		Appelez-nous	-
NI	WP285195		Sealer, Gasket (.20 Fl. Oz.) (6 Ml)   (Replaces: 285195)				$ 93.95

    View Diagram in Separate Window       Print Part List
