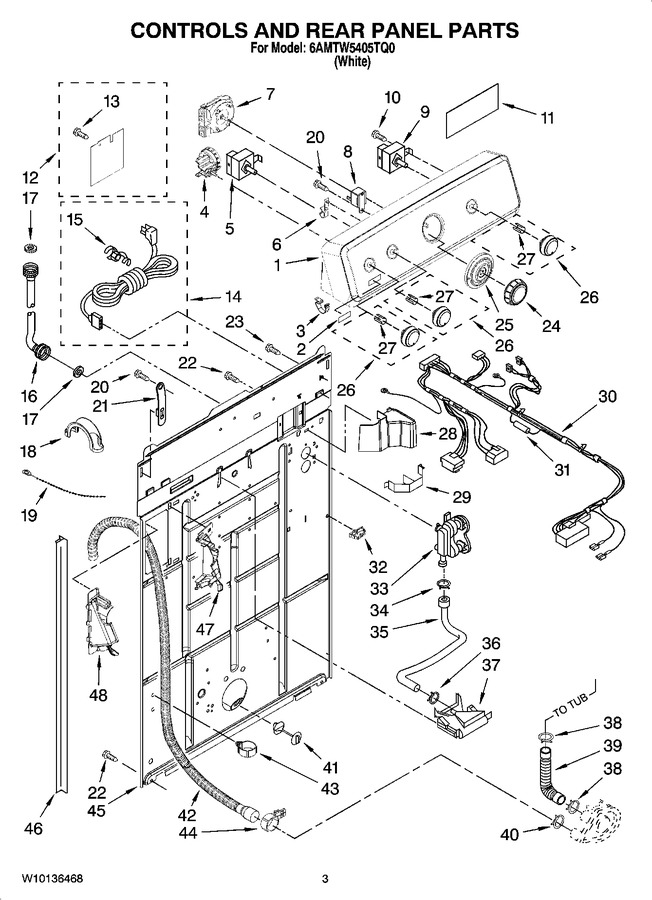

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10115420 | Console & Shell Assembly (includes Items 2 & 3) |
|
- | |||||
| 2 | W10203949 | Badge Assembly (Replaces: W10112569) |
|
$ 61.75 | |||||
| 3 | WP8312709 | Clip-console (2) (Replaces: 8312709) |
|
Immediately | $ 14.72 | ||||
| 4 | W10339334 | Switch, Water Level (Replaces: 8577845) |
|
Immediately | $ 178.33 | ||||
| 5 | WPW10168256 | Switch, Water Temperature (Replaces: W10111367) |
|
Immediately | $ 115.93 | ||||
| 6 | 8317975 | Retainer, Harness |
|
$ 5.86 | |||||
| 7 | W10155498 | Timer (motor Not A Service Part) |
|
- | |||||
| 9 | WPW10168257 | Switch, Rotary (Replaces: W10111373) |
|
$ 120.00 | |||||
| 10 | 3400073 | Screw, Ground |
|
- | |||||
| 11 | W10093725 | Shield, Upper |
|
- | |||||
| 12 | W10093726 | Shield, Assembly Lower |
|
- | |||||
| 13 | W10000080 | Rivet |
|
- | |||||
| 14 | W10121455 | Cord, Power |
|
- | |||||
| 15 | A801521 | Back Guard Assembly |
|
- | |||||
| 16 | WPW10489643 | Hose, Water Inlet (2) (Replaces: 3366916) |
|
$ 70.16 | |||||
| 18 | WP8577378 | U-bend, Drain Hose (Replaces: 8577378) |
|
$ 7.17 | |||||
| 19 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 7.11 | |||||
| 20 | WP90767 | Screw, 8/18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 21 | WP8568314 | Strap, Console (2) (Replaces: 8568314) |
|
$ 7.00 | |||||
| 23 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 6.26 | ||||
| 24 | WPW10110033 | Knob, Timer (Replaces: W10110033) |
|
$ 57.49 | |||||
| 25 | W10112571 | Dial, Timer |
|
$ 43.66 | |||||
| 26 | WPW10110035 | Knob, Control (Replaces: W10110035) |
|
$ 52.27 | |||||
| 27 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 7.03 | ||||
| 29 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 30 | W10133458 | Harness, Wiring (for Details See Pages 9 & 10) |
|
- | |||||
| 31 | WPW10111181 | Fuse (in Harness) (Replaces: W10111181) |
|
$ 29.84 | |||||
| 32 | 3352944 | Clip, Harness |
|
- | |||||
| 34 | WP596669 | Clamp, Hose (Replaces: 301958) |
|
Immediately | $ 7.56 | ||||
| 35 | WP3357328 | Hose, Vacuum Break (Replaces: 8541607) |
|
Immediately | $ 22.30 | ||||
| 36 | WP596669 | Clamp, Hose (Replaces: 370450) |
|
Immediately | $ 7.56 | ||||
| 37 | WP3360977 | Break, Vacuum (Replaces: 387606) |
|
Immediately | $ 45.41 | ||||
| 38 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 7.03 | ||||
| 39 | 285871 | Hose, Pump To Tub (includes Item 38) (Replaces: 3951449) |
|
Immediately | $ 24.01 | ||||
| 40 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 7.55 | ||||
| 41 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 17.01 | ||||
| 42 | WPW10096921 | Drain Hose Assembly (includes Items 43 & 44) (Replaces: W10127860) |
|
Immediately | $ 60.64 | ||||
| 43 | 8541667 | Clamp, Hose |
|
$ 5.86 | |||||
| 44 | 8541668 | Clamp, Hose |
|
$ 19.13 | |||||
| 45 | 8318015 | Panel, Rear |
|
$ 148.59 | |||||
| 46 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 23.63 | |||||
| 47 | WPW10096921 | Bucket, Drain Hose (left Half) (Replaces: 8541669) |
|
Immediately | $ 60.64 | ||||
| 48 | WPW10096921 | Bucket, Drain Hose (right Half) (Replaces: 8541658) |
|
Immediately | $ 60.64 |
