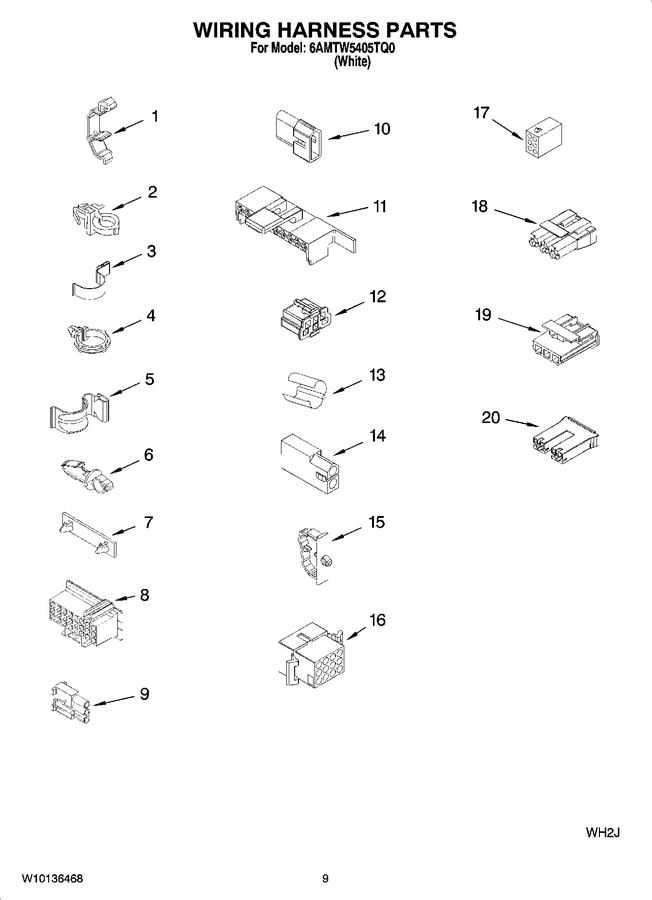

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3349557		Retainer, Harness		Appelez-nous	-
2	388498		Clip, Harness		Appelez-nous	-
3	8528351		Clip, Harness   (Replaces: 3347812)		Appelez-nous	-
4	8559320		Clip, Harness (push-in)   (Replaces: 3352501)				$ 41.27
5	WP90016		Clip, Harness (half-harness)   (Replaces: 90016)				$ 10.19
6	3390496		Clip, Harness		Appelez-nous	-
7	389379		Retainer, Harness				$ 5.84
8	W10876590		Timer, Block Disconnect (black)   (Replaces: 352089)				$ 11.48
8	3948614		Timer, Block Disconnect (natural)				$ 20.08
10	353424		Plug, Terminal (3-way)				$ 18.95
11	WP62505		Block, Disconnect (motor 2 Speed)   (Replaces: 62505)				$ 21.35
12	3347243		Block, Disconnect		Appelez-nous	-
13	63523		Protector				$ 169.95
14	717252		Connector (2-way)		Appelez-nous	-
15	3352944		Clip, Harness		Appelez-nous	-
16	3390423		Block, Disconnect (12-way)		Appelez-nous	-
17	3347730		Receptacle (6-way)		Appelez-nous	-
18	WP2172937		Connector (t.p.a.) (3-circuit)   (Replaces: 3948617)				$ 18.72
19	3360056		Plug (t.p.a) (3-circuit) (pressure Switch)				$ 14.35
20	3354926		Block, Connector (red)		Appelez-nous	-
20	3354925		Block, Connector (natural)		Appelez-nous	-
