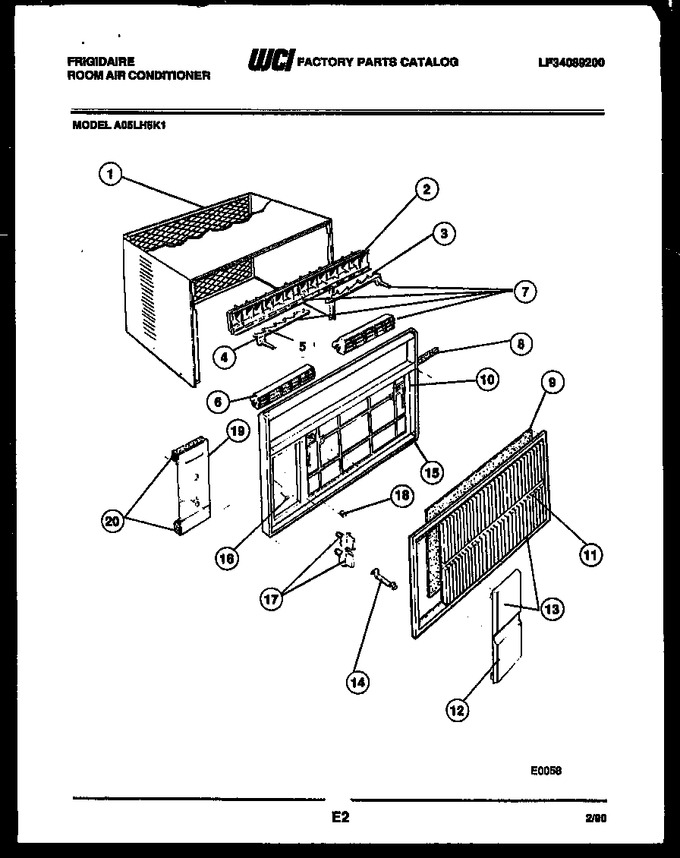

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016092 | Shell-cabinet |
|
- | |||||
| 2 | 3002457 | Frame-louver Vertical |
|
- | |||||
| 3 | 3002160 | Link-louver Rh |
|
- | |||||
| 4 | 3002165 | Link-louver Lh |
|
- | |||||
| 5 | 3001844 | Clip-linkdetent |
|
- | |||||
| 6 | 08017364 | Frame-louver Horiz |
|
- | |||||
| 7 | 3002457 | Louver And Link Assy Vertical |
|
- | |||||
| 8 | 08007482 | Seal-mullion |
|
- | |||||
| 9 | 08017189 | Filter-air With Frame |
|
- | |||||
| 10 | 08017180 | Insert-mullion |
|
- | |||||
| 11 | 08017169 | Panel-front |
|
- | |||||
| 12 | 08016194 | Door-front |
|
- | |||||
| 13 | 08017178 | Panel And Door Complete |
|
- | |||||
| 14 | 3001784 | Clip-font To Base |
|
- | |||||
| 15 | 08017187 | Front-complete |
|
- | |||||
| 16 | 08008175 | Screw-front Retainer |
|
- | |||||
| 17 | 08016109 | Knob-slide |
|
- | |||||
| 18 | 3002189 | Knob-slide |
|
- | |||||
| 19 | 3016769 | Escutcheon, Dial Plate |
|
- | |||||
| 20 | 3001861 | Seal-dial Plate |
|
- | |||||
| *28457 | 08017124 | Bracket-frame Door |
|
- | |||||
| *28457 | 08017126 | Plate-name Door |
|
- | |||||
| *28457 | 08017137 | Track-filter |
|
- | |||||
| *28457 | 3211028 | Screw-shell/base |
|
- |
