02 - Cabinet Parts
03 - Unit Parts
04 - Electrical Parts
05 - Air Handling Parts
06 - Compressor Parts
07 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:

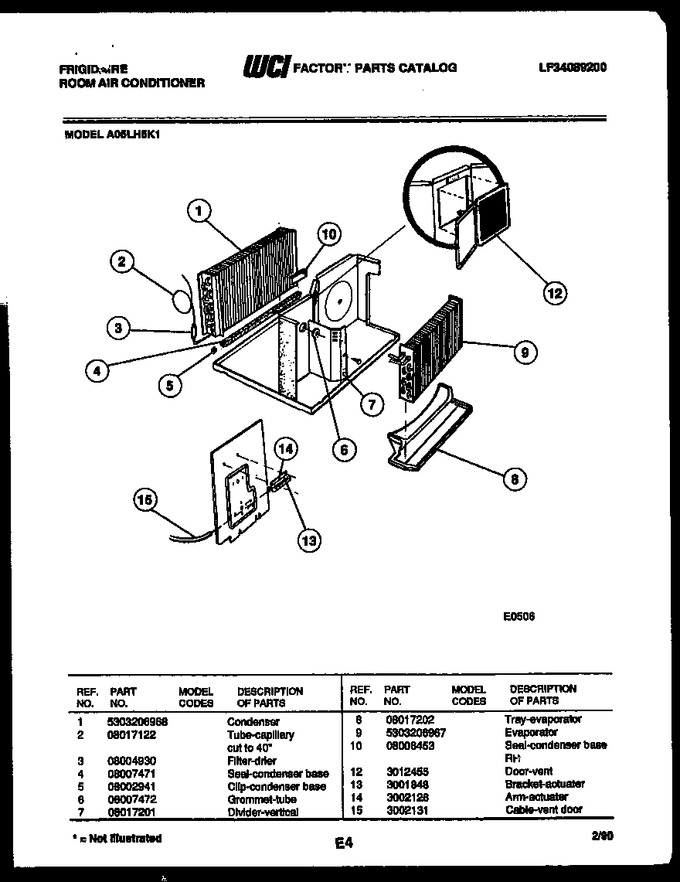

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303206968 | Condenser |
|
- | |||||
| 2 | 08017122 | Tube-capillary (cut To 40``) |
|
- | |||||
| 3 | 08004930 | Filter-drier |
|
- | |||||
| 4 | 08007471 | Seal Condenser |
|
- | |||||
| 5 | 08002941 | Clip |
|
- | |||||
| 6 | 08007472 | Grommet-tube |
|
- | |||||
| 7 | 08017201 | Divider-vertical |
|
- | |||||
| 8 | 08017202 | Tray-evaporator |
|
- | |||||
| 9 | 5303206967 | Evaporator |
|
- | |||||
| 10 | 08006453 | Seal-condenser Base Rh |
|
- | |||||
| 12 | 3012455 | Door-vent |
|
- | |||||
| 13 | 3001848 | Bracket-actuater |
|
- | |||||
| 14 | 3002126 | Arm-actuater |
|
- | |||||
| 15 | 3002131 | Cable-vent Door |
|
- |
