02 - Cabinet Parts
03 - Unit Parts
04 - Electrical Parts
05 - Air Handling Parts
06 - Compressor Parts
07 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

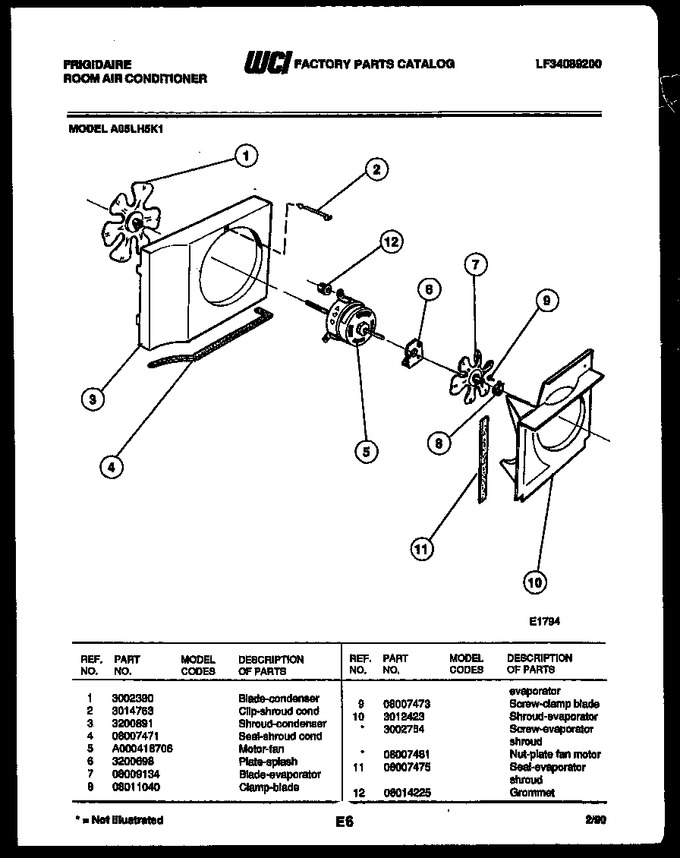

| 1 | 3002390 | Blade-condenser |
|
- | |||||
| 2 | 3014763 | Clip-shroud Cond |
|
- | |||||
| 3 | 3200891 | Shroud-condenser |
|
- | |||||
| 4 | 08007471 | Seal Condenser |
|
- | |||||
| 5 | A000418706 | Motor Fan |
|
- | |||||
| 6 | 3200698 | Plate-splash |
|
- | |||||
| 7 | 08009134 | Blade-evaporator |
|
- | |||||
| 8 | 08011040 | Clamp-blade Evaporator |
|
- | |||||
| 9 | 08007473 | Screw-clamp Blade |
|
- | |||||
| 10 | 3012423 | Shroud-evaporator |
|
- | |||||
| 11 | 08007475 | Seal-evaporator Shroud |
|
- | |||||
| 12 | 08014225 | Grommet |
|
- | |||||
| 10A | 3002754 | Screw-evaporator Shroud (non-illustrated) |
|
- | |||||
| 10B | 08007481 | Nut |
|
