View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

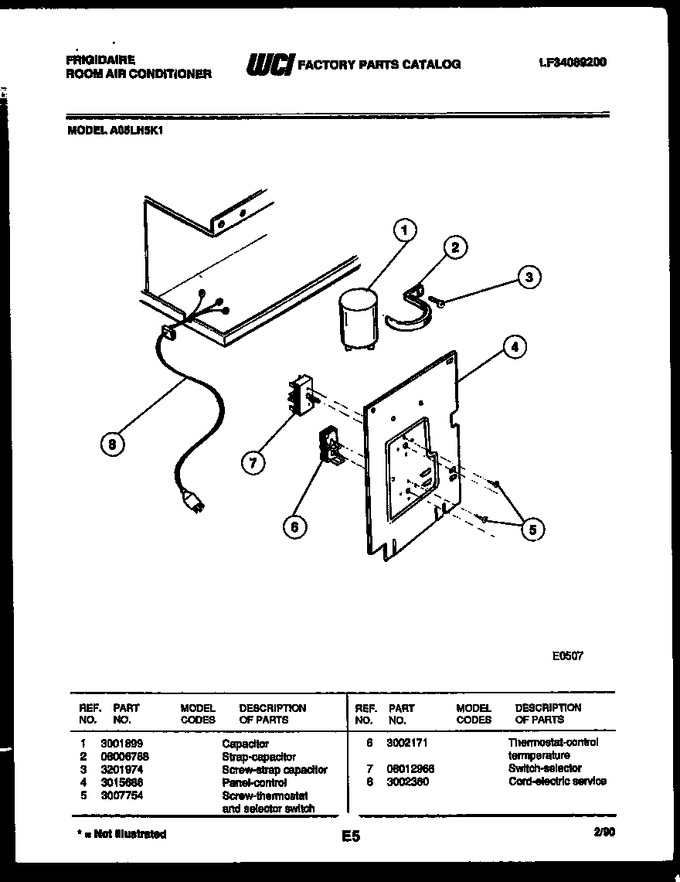

02 - Cabinet Parts
03 - Unit Parts
04 - Electrical Parts
05 - Air Handling Parts
06 - Compressor Parts
07 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3001899 | Capacitor |
|
- | |||||
| 2 | 08006788 | Strap-capacitor |
|
- | |||||
| 3 | 3201974 | Screw-strap Capacitor |
|
- | |||||
| 4 | 3015686 | Panel-control |
|
- | |||||
| 5 | 3007754 | Screw-thermostat And Selector Switch |
|
- | |||||
| 6 | 3002171 | Thermostat-control Temperature |
|
- | |||||
| 7 | 08012966 | Switch-selector |
|
- | |||||
| 8 | 3002360 | Cord-electric Service |
|
- |
