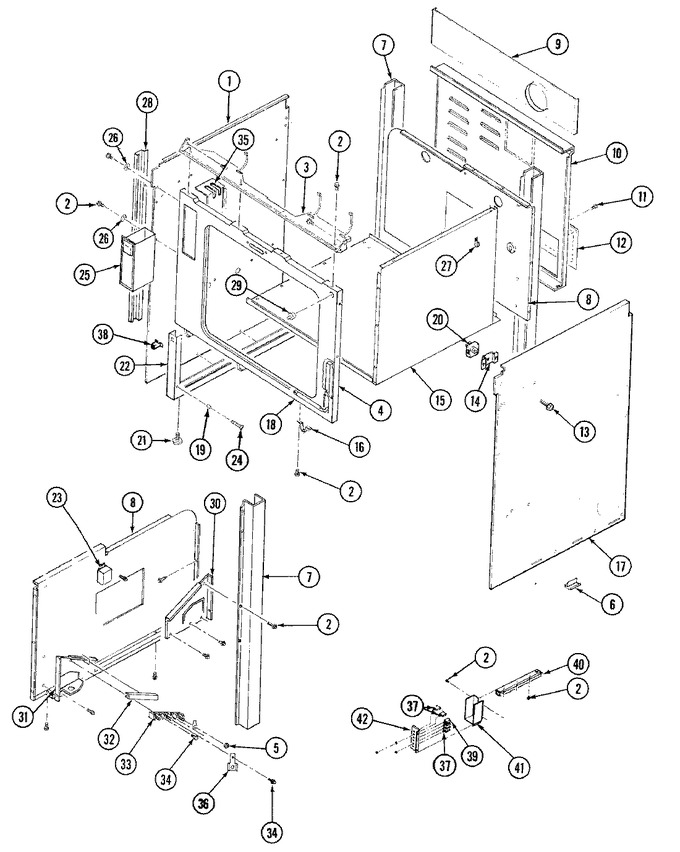

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y702301 | Panel, Side (lt) | 1 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: 715773) | 1 |
|
Immediately | $ 7.04 | |||
| 3 | 712002 | Angle, Mount | 1 |
|
- | ||||
| 4 | 702329 | Closure, Front | 1 |
|
- | ||||
| 5 | 707161 | Nut | 1 |
|
- | ||||
| 6 | Y702476 | Clip, Spring | 1 |
|
- | ||||
| 7 | 704296 | Support,tube | 1 |
|
- | ||||
| 8 | Y704735 | Back, Inner | 1 |
|
- | ||||
| 9 | Y702345 | Plate, Back | 1 |
|
- | ||||
| 10 | 702307 | Cover, Rear (lower) | 1 |
|
- | ||||
| 11 | WPY706189 | Screw (Replaces: 700906) | 1 |
|
Immediately | $ 6.47 | |||
| 12 | 702333 | Cover, Access(r.h) | 1 |
|
- | ||||
| 13 | 704335 | Screw | 1 |
|
- | ||||
| 14 | 704337 | Bracket | 1 |
|
- | ||||
| 15 | Y702319 | Panel, Bottom & Side (rt) | 1 |
|
- | ||||
| 15 | 702336 | Angle, Oven Support | 1 |
|
- | ||||
| 16 | 702658 | Bracket, Hat | 1 |
|
- | ||||
| 17 | DE81-09758A | Panel, Side (rt) (Replaces: 702300) | 1 |
|
$ 1,127.72 | ||||
| 18 | Y702696 | Strain, Relief | 1 |
|
- | ||||
| 18 | Y703419 | Hinge | 1 |
|
- | ||||
| 18 | WP71001171 | Screw, No.10/32 Torx (Replaces: Y04100270) | 1 |
|
$ 6.26 | ||||
| 19 | 702745 | Spacer | 1 |
|
- | ||||
| 20 | 704355 | Switch, Broil Cycle | 1 |
|
- | ||||
| 21 | Y04100573 | Leveler, Leg |
|
$ 25.32 | |||||
| 21 | W11117769 | Leveler,adjust (Replaces: Y708696) | 1 |
|
Immediately | $ 16.61 | |||
| 22 | 04100706 | Rail, Support Assy | 1 |
|
- | ||||
| 23 | 715870 | Screw | 1 |
|
- | ||||
| 23 | 704466 | Baffle, Inner | 1 |
|
- | ||||
| 23 | Y704540 | Module, Spark | 1 |
|
- | ||||
| 23 | Y704978 | Grommet | 1 |
|
- | ||||
| 24 | WP67006908 | Screw (Replaces: 712092) | 1 |
|
Immediately | $ 7.16 | |||
| 25 | Y712001 | Container,grease Assembly | 1 |
|
- | ||||
| 26 | 00702462 | Washer, Conical (Replaces: 702462) | 1 |
|
$ 1,015.54 | ||||
| 27 | 705290 | Clip, Screw Down | 1 |
|
- | ||||
| 28 | 702337 | Trim, Side | 1 |
|
- | ||||
| 29 | 701666 | Switch, Door | 1 |
|
- | ||||
| 30 | 702557 | Gussett (lt) | 1 |
|
- | ||||
| 31 | 702556 | Gussett (rt) | 1 |
|
- | ||||
| 32 | 702898 | Insulator | 1 |
|
- | ||||
| 33 | WP8203546 | Block, Terminal (Replaces: Y702284) | 1 |
|
Immediately | $ 27.12 | |||
| 34 | WP67006908 | Screw (Replaces: Y703002) | 1 |
|
Immediately | $ 7.16 | |||
| 35 | DE81-08871A | Enclosure, Side (right) (Replaces: 702183) | 1 |
|
$ 526.73 | ||||
| 36 | Y702335 | Strap, Ground | 1 |
|
- | ||||
| 36 | 712239 | Kit,backsplash Adaptor | 1 |
|
- | ||||
| 37 | Y702613 | Breaker, Circuit (30 Amp) | 1 |
|
- | ||||
| 38 | 708763 | Clip----s | 1 |
|
- | ||||
| 39 | 701774 | Circuit Breaker (15 Amp) | 1 |
|
- | ||||
| 40 | DE81-07483A | Wireway (Replaces: 703492) | 1 |
|
$ 400.73 | ||||
| 41 | 702523 | Enclosure, Circuit Breaker | 1 |
|
- | ||||
| 42 | 705249 | Cover, Circuit Breaker | 1 |
|
- | ||||
| 42 | Y705344 | Bracket, Anti-tip | 1 |
|
$ 5.51 | ||||
| NI | 705242 | Baffle, Air | 1 |
|
- | ||||
| NI | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.15 | |||
| NI | Y702607 | Block, Terminal | 1 |
|
- | ||||
| NI | 705247 | Harness, Circuit Breaker | 1 |
|
- |
