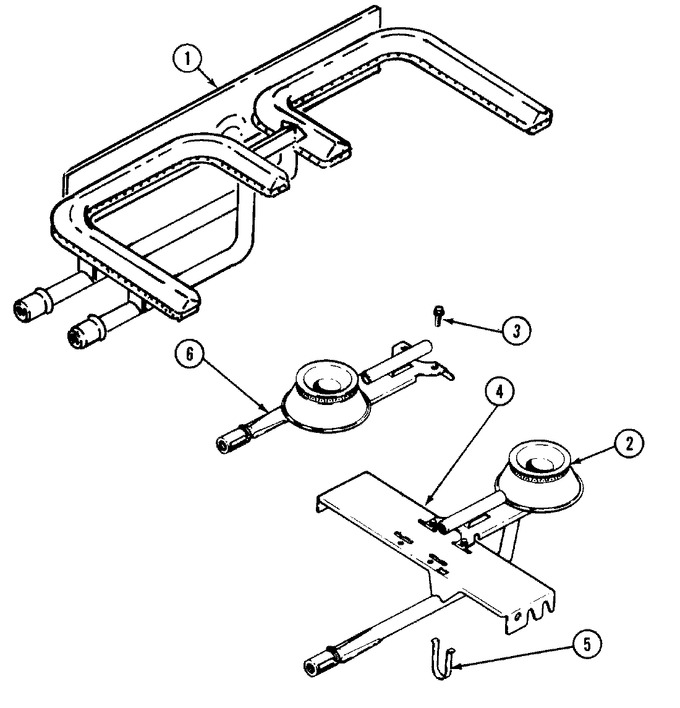

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y712601		Burner, Grill	1			$ 304.99
2	74005189		Burner, Rear   (Replaces: Y705402)	2			$ 211.73
2	705106		Burner, Rear	1	Appelez-nous	-
3	WP90767		Screw   (Replaces: 715773)	1		Immediately	$ 7.04
4	WP3801F403-80		Bracket, Burner   (Replaces: Y704519)	1			$ 71.17
5	704549		Clip, Spring	1	Appelez-nous	-
6	WP7505P283-60		Burner, Front   (Replaces: Y705401)	2			$ 211.46
6	705105		Burner, Front	1			$ 69.29
