SELECT A DIAGRAM

01 - Access Panel


02 - Blower Motor-blower/plenum


03 - Blower Motor-convection


04 - Blower Motor-cooling


05 - Body

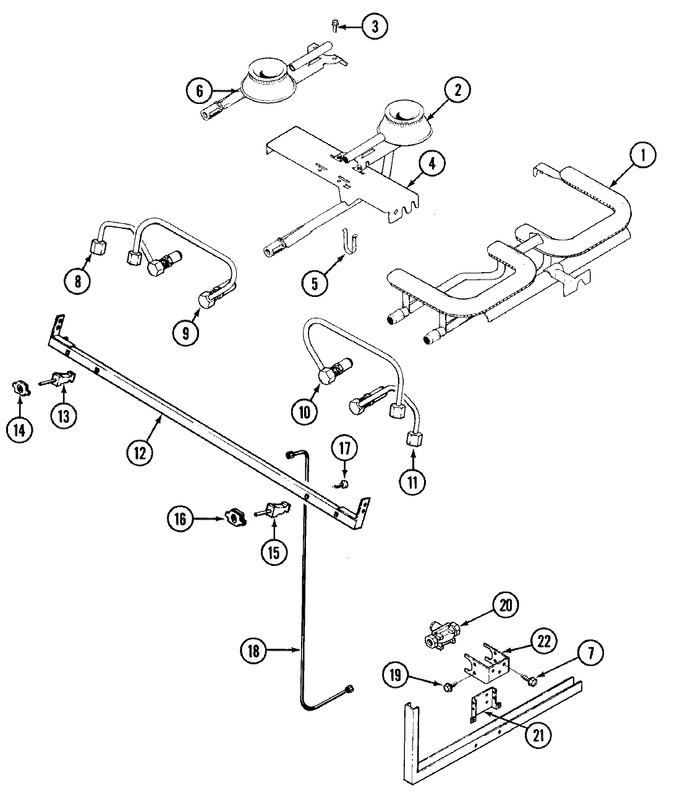

06 - Burner/manifold Assembly


07 - Control Panel


08 - Door


09 - Gas Controls (wht)


10 - Internal Controls


11 - Main Top


12 - Oven Liner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y712601		Burner, Grill	11			$ 304.99
2	74005189		Burner, Rear   (Replaces: Y705317)	11			$ 211.73
3	WP90767		Screw   (Replaces: 715773)	11		Immediately	$ 7.04
4	WP3801F403-80		Bracket, Burner   (Replaces: Y704519)	11			$ 71.17
5	704549		Clip, Spring	11	Appelez-nous	-
6	WP71002179		Igniter, Spark   (Replaces: Y704931)	11			$ 181.49
6	Y705318		Burner, Front	11	Appelez-nous	-
7	00489128		Screw   (Replaces: Y705026)	11			$ 773.97
8	Y704937		Tube, Burner (lr)	11	Appelez-nous	-
9	Y704936		Tube, Burner (lf)	11	Appelez-nous	-
10	704939		Tube, Burner (rr)	11	Appelez-nous	-
11	Y704938		Tube, Burner (rf)	11	Appelez-nous	-
12	704921		Manifold	11	Appelez-nous	-
13	Y04100187		Valve, Gas (lt)	12			$ 144.22
13	Y704505		Valve (lt)	11	Appelez-nous	-
14	WPY704513		Switch, Valve (lt)   (Replaces: Y704513)	11			$ 98.42
15	Y04100184		Valve, Gas (rt)	12			$ 247.35
15	Y04100184		Valve (rt)   (Replaces: Y704927)	11			$ 247.35
16	Y704928		Switch, Valve (rh)	11	Appelez-nous	-
17	Y705019		Screw	11	Appelez-nous	-
18	Y704934		Tube, Supply	11	Appelez-nous	-
19	WP90767		Screw   (Replaces: Y700502)	11		Immediately	$ 7.04
20	Y704948		Regulator	11	Appelez-nous	-
21	Y704933		Bracket, Support	11	Appelez-nous	-
22	Y704932		U-bracket	11	Appelez-nous	-
22	Y703856		Nut, Jam	11			$ 5.53
22	704568		Lockwasher	11			$ 13.02

    View Diagram in Separate Window       Print Part List
