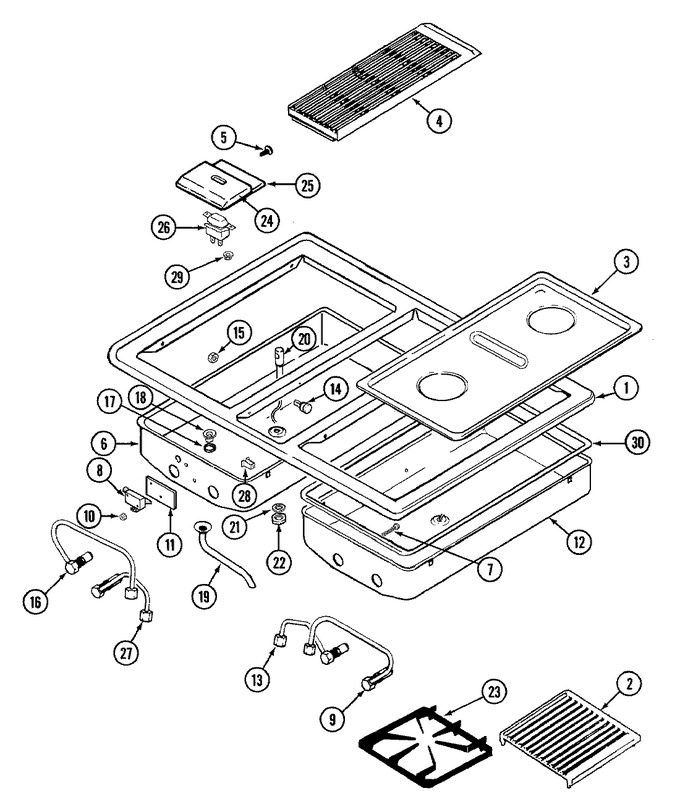

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 712600 | Top, Stainless Steel | 1 |
|
- | ||||
| 2 | Y704544 | Grate, Grill | 1 |
|
- | ||||
| 2 | Y04100054 | Grate, Grill | 4 |
|
- | ||||
| 3 | Y712274 | Pan, Aeration (blk) | 1 |
|
- | ||||
| 4 | Y704228 | Grill, Air Blk | 1 |
|
- | ||||
| 4 | Y04100630 | Grill, Air (blk) | 2 |
|
$ 56.87 | ||||
| 5 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 12.62 | |||
| 6 | Y704924 | Pan, Grill | 1 |
|
- | ||||
| 7 | DE81-04441A | Screw (Replaces: 702380) | 1 |
|
$ 329.62 | ||||
| 8 | 7403P620-60 | Switch, Micro (Replaces: Y704533) | 1 |
|
$ 141.22 | ||||
| 8 | 715617 | Washer (teflon) | 1 |
|
- | ||||
| 9 | 704939 | Tube, Burner (rr) | 1 |
|
- | ||||
| 10 | Y704522 | Nut | 1 |
|
- | ||||
| 11 | Y704534 | Insulator, Switch | 1 |
|
- | ||||
| 12 | 704941 | Clip, Loop | 1 |
|
- | ||||
| 12 | Y702825 | Plug, Rubber | 1 |
|
- | ||||
| 12 | 704925 | Pan, Grill (rt) | 1 |
|
- | ||||
| 13 | Y704938 | Tube, Burner (rf) | 1 |
|
- | ||||
| 14 | 704536 | Pin, Locator | 1 |
|
- | ||||
| 15 | Y052721 | Nut (Replaces: Y704553) | 1 |
|
$ 21.38 | ||||
| 16 | Y704936 | Tube, Burner (lf) | 1 |
|
- | ||||
| 17 | 702747 | Washer, Teflon | 1 |
|
- | ||||
| 18 | 702748 | Nut, Drain Tube | 1 |
|
- | ||||
| 19 | Y702463 | Tube, Drain (left) | 1 |
|
- | ||||
| 20 | WP71002179 | Igniter, Spark (Replaces: Y704931) | 1 |
|
$ 181.49 | ||||
| 21 | 704568 | Lockwasher | 1 |
|
$ 13.02 | ||||
| 22 | Y703856 | Nut, Jam | 1 |
|
$ 5.53 | ||||
| 23 | Y705021 | Grate, Surface | 1 |
|
- | ||||
| 24 | Y704232 | Escutcheon (blk) | 1 |
|
- | ||||
| 24 | Y04100547 | Escutcheon (blk) | 2 |
|
- | ||||
| 25 | Y704233 | Bracket, Filler | 1 |
|
- | ||||
| 26 | Y704221 | Switch, Fan (black) | 1 |
|
- | ||||
| 27 | Y704937 | Tube, Burner (lr) | 1 |
|
- | ||||
| 28 | WP90767 | Screw (Replaces: Y700502) | 1 |
|
Immediately | $ 7.04 | |||
| 28 | Y700503 | Clip, Retainer | 1 |
|
- | ||||
| 29 | Y705023 | Palnut | 1 |
|
- | ||||
| 30 | Y704979 | Seal, Pan | 1 |
|
- | ||||
| NI | Y704977 | Nut, 5/8`` Hex | 1 |
|
- | ||||
| NI | Y704947 | Washer | 1 |
|
- |
