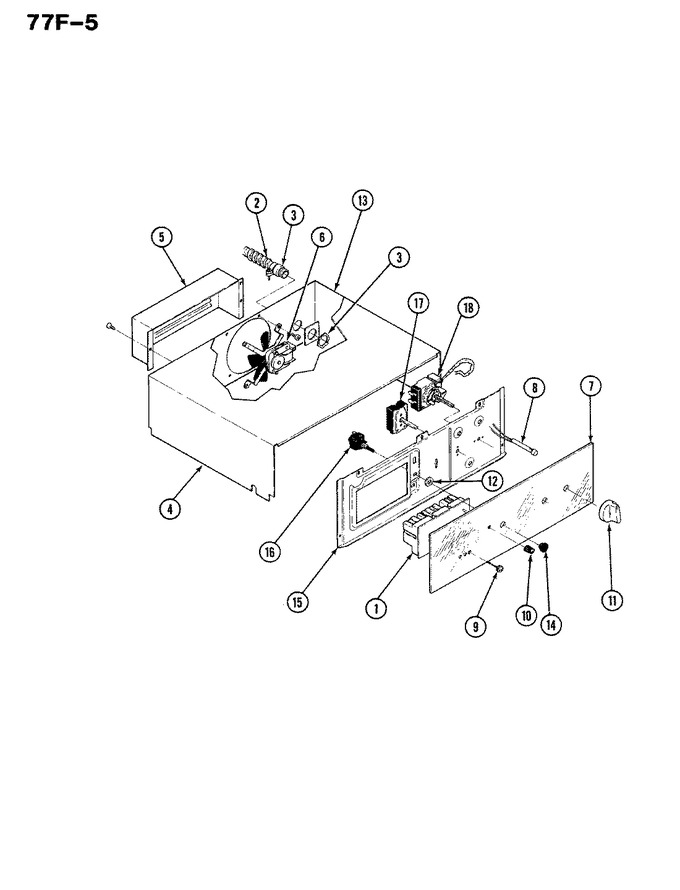

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7601P123-60		Clock	01	Appelez-nous	-
1	7601P197-60		Clock	21	Appelez-nous	-
1	8312P017-60		Shaft, Clock	01	Appelez-nous	-
2	3414F037-44		Tubing, 1/2 X 48`` Flexible	01	Appelez-nous	-
3	7417P003-60		Connector, Cable	01	Appelez-nous	-
4	4005F150-51		Cover, Wire	01	Appelez-nous	-
5	4005F262-51		Cover, Fan	01	Appelez-nous	-
6	7427P006-60		Fan Assembly	01	Appelez-nous	-
7	7912P061-60		Glass, Panel (wht)	01	Appelez-nous	-
8	7407P007-60		Light, Indicator----na	01	Appelez-nous	-
9	7711P420-60		Knob, Clock (button-wht)	01	Appelez-nous	-
10	7711P419-60		Knob, Clock (wht)	01	Appelez-nous	-
11	7737P011-60		Knob, Switch (wht)	01	Appelez-nous	-
12	7103P021-60		Nut, Switch	01	Appelez-nous	-
13	3605F131-51		Plate, Reinforcement	01	Appelez-nous	-
14	7214P023-60		Sleeve, Switch (wht)	01	Appelez-nous	-
15	3605F139-80		Support, Clock	01	Appelez-nous	-
16	7403P204-60		Switch, Push (wht)	01	Appelez-nous	-
17	7403P023-60		Switch, Selector	01	Appelez-nous	-
18	7404P039-60		Thermostat, Upper	01	Appelez-nous	-
