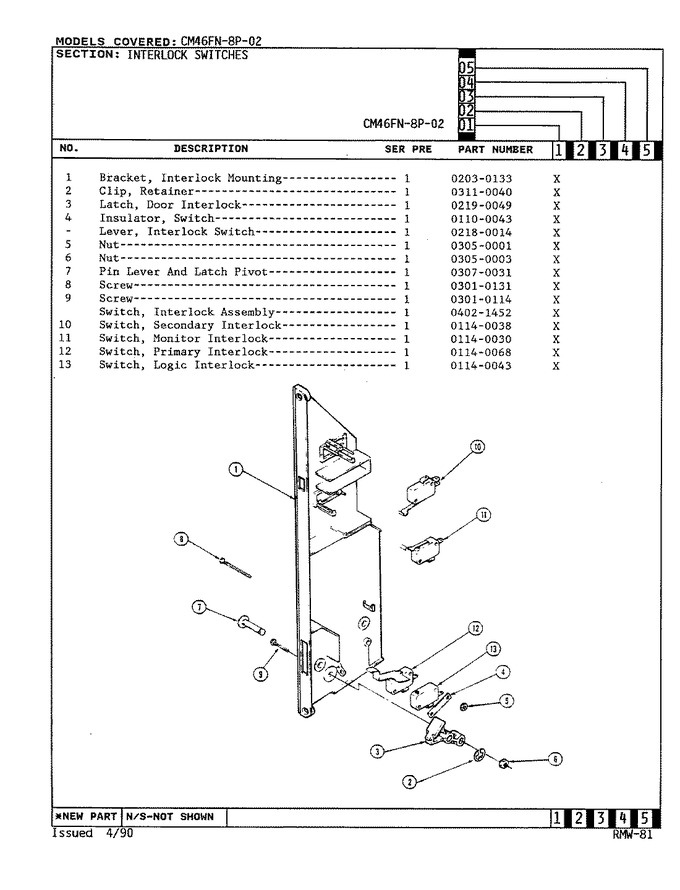

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y02030133 | Bracket, Interlock | 01 |
|
- | ||||
| 2 | 03110040 | Clip, Retainer | 01 |
|
- | ||||
| 3 | 02190049 | Latch, Door Interlock | 01 |
|
- | ||||
| 4 | Y01100043 | Insulator, Switch | 01 |
|
- | ||||
| 4 | 02180014 | Lever, Interlock Switch | 01 |
|
- | ||||
| 5 | Y03050001 | Nut | 01 |
|
- | ||||
| 6 | 03050003 | Nut | 01 |
|
- | ||||
| 7 | Y03070031 | Pin, Lever & Pivot Latch | 01 |
|
- | ||||
| 8 | 03010131 | Screw | 01 |
|
- | ||||
| 9 | 03010114 | Screw | 01 |
|
- | ||||
| 9 | 04021452 | Switch, Interlock Assy | 01 |
|
- | ||||
| 10 | Y01140038 | Switch, Secondary Interlock | 01 |
|
- | ||||
| 11 | Y01140030 | Switch, Monitor Interlock | 01 |
|
- | ||||
| 12 | 01140068 | Switch, Primary Interlock | 01 |
|
- | ||||
| 13 | Y01140043 | Switch, Logic Interlock | 01 |
|
- |
