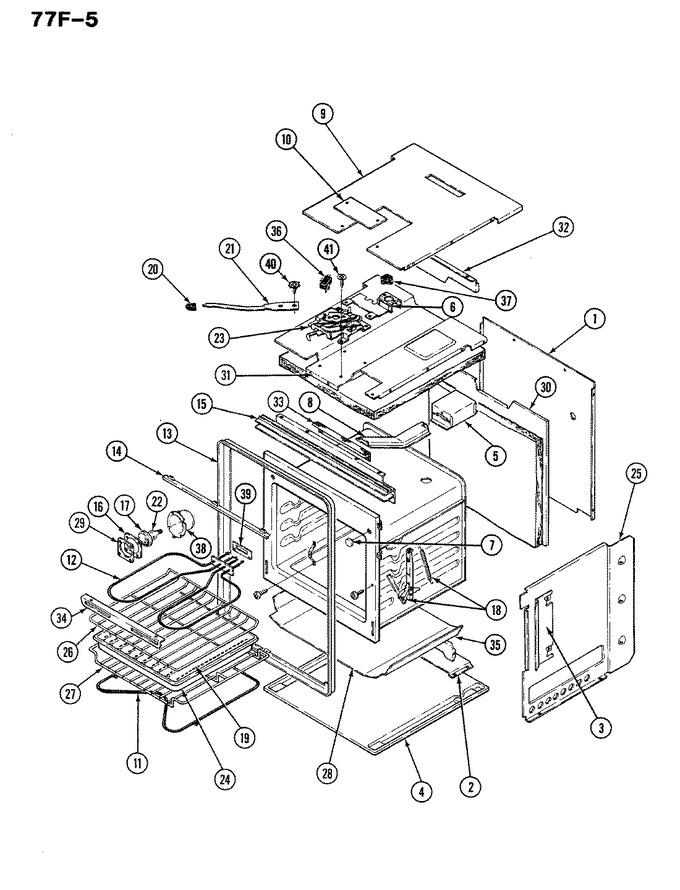

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F121-51 | Back, Main | 01 |
|
- | ||||
| 2 | 3601F005-80 | Baffle, Base | 01 |
|
- | ||||
| 3 | 3601F130-51 | Baffle, Side | 01 |
|
- | ||||
| 4 | 4003F011-80 | Base, Wall Oven | 01 |
|
- | ||||
| 5 | 4006W046-45 | Box, Vent | 01 |
|
- | ||||
| 6 | 3801F128-45 | Bracket, Hi Limit | 01 |
|
- | ||||
| 7 | 8003P009-60 | Bumper, Door (square) | 09 |
|
- | ||||
| 7 | 8003P002-60 | Bumper Door (round) | 01 |
|
- | ||||
| 8 | 3818W002-15 | Channel, Vent Assembly | 01 |
|
- | ||||
| 9 | 4005F202-51 | Cover, Box | 01 |
|
- | ||||
| 10 | 4005F160-45 | Cover, Lock | 01 |
|
- | ||||
| 11 | WPY04000066 | Element Bake (Replaces: 7406P013-60) | 01 |
|
Immediately | $ 70.53 | |||
| 11 | WPY04000066 | Element, Bake (Replaces: 7406P075-60) | 16 |
|
Immediately | $ 70.53 | |||
| 12 | WPY04000048 | Element, Broil (Replaces: 7406P076-60) | 16 |
|
$ 160.58 | ||||
| 12 | WPY04000048 | Element,broil (Replaces: 7406P003-60) | 01 |
|
$ 160.58 | ||||
| 13 | 7756P035-60 | Extrusion, Control Top | 01 |
|
- | ||||
| 13 | 7750P028-60 | Extrusion, Front Frame | 01 |
|
- | ||||
| 14 | 7756P038-60 | Extrusion, Side Filler (rt) | 01 |
|
- | ||||
| 14 | 7756P037-60 | Extrusion, Top Filler | 01 |
|
- | ||||
| 14 | 7720P139-60 | Extrusion, Glass Retainer | 01 |
|
- | ||||
| 14 | 7756P036-60 | Extrusion, Side Filler (lt) | 01 |
|
- | ||||
| 15 | 7756P032-60 | Extrusion, Vent | 01 |
|
- | ||||
| 15 | 7416P002-60 | Fuse | 01 |
|
- | ||||
| 15 | 7408P038-60 | Receptacle, Fuse | 15 |
|
- | ||||
| 15 | 7408P014-60 | Receptacle, Fuse | 01 |
|
- | ||||
| 16 | 7201P014-60 | Gasket, Housing | 01 |
|
- | ||||
| 16 | 7201P015-60 | Gasket, Lamp Retainer | 01 |
|
- | ||||
| 16 | 7201P016-60 | Gasket | 01 |
|
- | ||||
| 17 | 7902P057-60 | Glass, Lamp Guard | 01 |
|
- | ||||
| 18 | 7106P037-60 | Hinge, Door | 18 |
|
- | ||||
| 18 | 7106A019-60 | Hinge, Upper | 01 |
|
- | ||||
| 19 | Y3413F01619 | Insert, Broil Pan | 20 |
|
- | ||||
| 19 | 4396923 | Insert, Broil Pan (Replaces: 3413F002-19) | 01 |
|
Immediately | $ 52.04 | |||
| 20 | 7701P072-60 | Handle, Door Lock (white) | 01 |
|
- | ||||
| 21 | 8009P011-60 | Lever, Latch | 01 |
|
- | ||||
| 22 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 01 |
|
Immediately | $ 1.98 | |||
| 23 | 8002P072-60 | Latch Assy. (Replaces: 8002P016-60) | 01 |
|
$ 306.52 | ||||
| 24 | Y3401F02019 | Pan, Broil | 20 |
|
- | ||||
| 24 | 4396923 | Pan, Broil (Replaces: 3401F004-19) | 01 |
|
Immediately | $ 52.04 | |||
| 25 | 2618F053-51 | Panel, Side (rt) | 01 |
|
- | ||||
| 25 | 2618F054-51 | Panel, Side (lt) | 01 |
|
- | ||||
| 26 | 7801P005-60 | Rack | 01 |
|
- | ||||
| 27 | 7801P007-60 | Rack, Offset | 01 |
|
- | ||||
| 28 | 3804W034-51 | Retainer, Bottom | 01 |
|
- | ||||
| 29 | 3804F011-45 | Retainer | 01 |
|
- | ||||
| 30 | 3804F052-51 | Ret Rear Insul | 01 |
|
- | ||||
| 31 | 3804F053-51 | Retainer,top | 01 |
|
- | ||||
| 32 | 3604F101-80 | Shield, Air | 01 |
|
- | ||||
| 32 | 3604F037-44 | Cover | 01 |
|
$ 30.78 | ||||
| 33 | 3604F048-80 | Shield, Terminal | 01 |
|
- | ||||
| 34 | 3807F176-15 | Support, Broil Element | 01 |
|
- | ||||
| 35 | 3807F137-80 | Support | 01 |
|
- | ||||
| 36 | 7403P007-60 | Switch, Door Lock | 01 |
|
- | ||||
| 37 | 7403P063-60 | Switch, High Limit | 01 |
|
$ 156.41 | ||||
| 38 | 7408P002-60 | Receptacle, Lamp | 01 |
|
- | ||||
| 39 | 7201P003-60 | Gasket, Element | 01 |
|
- | ||||
| 40 | WP4159193 | Screw (Replaces: 7101P115-60) | 01 |
|
$ 4.29 | ||||
| 41 | 7101P035-60 | Screw, Switch | 01 |
|
- | ||||
| 41 | 7408P032-60 | Receptacle, Mw | 01 |
|
- |
