SELECT A DIAGRAM

01 - Base & Cavity (cm46fn-8p-02)


02 - Control Panel


03 - Control Panel (cm46fn-8p-02)


04 - Door


05 - Door (cm46fn-8p-02)


06 - Interlock Switches (cm46fn-8p-02)


07 - Oven/body


08 - Turntable (cm46fn-8p-02)

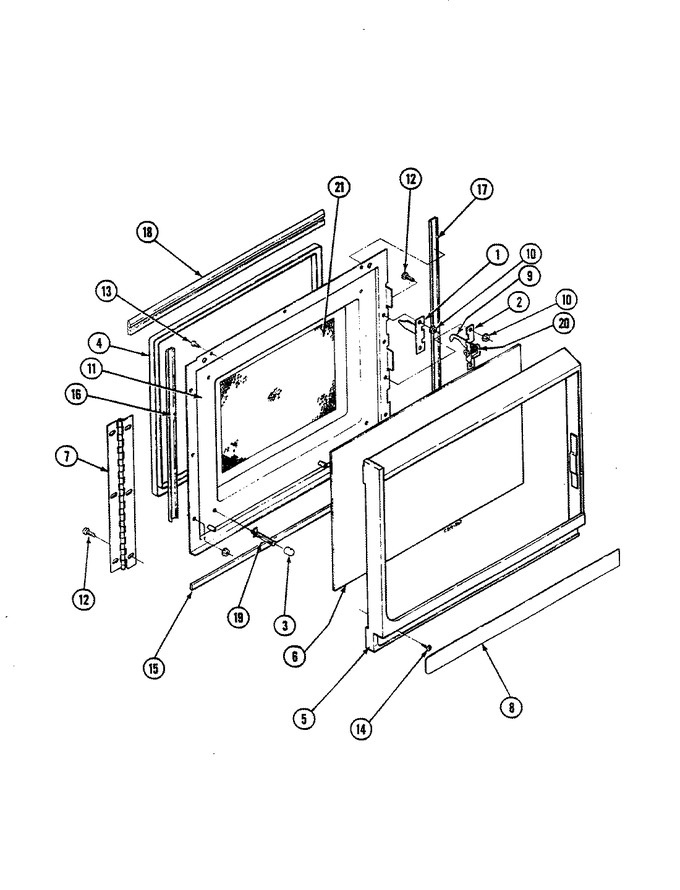

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y02030117		Activator, Monitor	01	Appelez-nous	-
2	Y02030116		Bracket, Door Latch	01	Appelez-nous	-
3	Y02100135		Bumper	01	Appelez-nous	-
4	Y02100080		Choke, Filler (wht)	01	Appelez-nous	-
5	04021462		Frame, Door	01	Appelez-nous	-
6	02220107		Glass, Door Outer	01	Appelez-nous	-
6	02120166		Extrusion, Handle (wht)	01	Appelez-nous	-
7	Y02200017		Hinge, Door	01	Appelez-nous	-
8	02100199		Insert, Control	01	Appelez-nous	-
9	02190056		Latch, Door	01	Appelez-nous	-
9	02240729		Label	01	Appelez-nous	-
10	M0282005		Nut, Hex(must Order Locally)   (Replaces: Y03050041)	01			$ 7.07
11	Y04021466		Door Assy	01	Appelez-nous	-
12	Y03010121		Screw	01	Appelez-nous	-
13	Y03010118		Screw	01	Appelez-nous	-
14	WP74004005		Screw   (Replaces: Y03010135)	01			$ 6.95
15	02120114		Seal, Bottom	01	Appelez-nous	-
16	Y02120121		Seal, Hinge Side	01	Appelez-nous	-
17	Y02120122		Seal, Latch Side	01	Appelez-nous	-
18	Y03120064		Shim	01	Appelez-nous	-
18	02120153		Seal, Top	01	Appelez-nous	-
19	Y03120069		Spacer, Door Window	01	Appelez-nous	-
20	Y03180023		Spring, Door Latch	01	Appelez-nous	-
21	Y02220073		Window, Polyester	01	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
