Diagram for 02 - Door And Drawer
02 - Door And Drawer

Diagram for 03 - Oven
03 - Oven

Diagram for 04 - Section
04 - Section

Diagram for 05 - Cooktop
05 - Cooktop

Diagram for 06 - Upper Chassis And Components
06 - Upper Chassis And Components

Diagram for 07 - Light, Hinge And Stirrer
07 - Light, Hinge And Stirrer

Diagram for 08 - Control
08 - Control

Diagram for 09 - Microwave Door And Latch
09 - Microwave Door And Latch

Diagram for 10 - Magnetron And Airflow , Not Illustr
10 - Magnetron And Airflow , Not Illustr


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 327869 Liner, Door Appelez-nous -
1 254217 Screw, 10a X 3/8 (3) Appelez-nous -
1 338177 Clip (2) Appelez-nous -
2 308033 Channel, Latch Appelez-nous -
2 308513 Screw, 10-32t X 3/8 Appelez-nous -
4 309844 Window Package Appelez-nous -
4 WP308685 Screw, 10a X1/2   (Replaces: 253549) In-Stock Immediately $ 7.08

5 308021 Retainer, Insulation Appelez-nous -
5 WP308685 Screw, 10a X1/2   (Replaces: 253549) In-Stock Immediately $ 7.08

6 309152 Cushion, Oven Door (9) Appelez-nous -
7 310032 Cushion (7) Appelez-nous -
8 309329 Protector, Drawer (2) Appelez-nous -
11 309069 Glass, Door Appelez-nous -
12 WP355515 Screw, 8 X 7/8 (4)   (Replaces: 355515) Special Order $ 6.90

12 327915 Handle, Oven Door (includes Illus. 13) Appelez-nous -
13 308080 End Cap, Handle (2) Special Order $ 11.10

14 309070 Frame, Door Appelez-nous -
14 309029 Screw, (black) 8-15 X 1/2 (2) Appelez-nous -
14 309055 Nut, Speed (4) Appelez-nous -
15 308027 Seal, Fiberglass Appelez-nous -
16 308078 Clip, Glass (7) Special Order $ 9.62

17 WP308685 Screw, 10a X1/2   (Replaces: 253549) In-Stock Immediately $ 7.08

17 307980 Glide, Rear (2) Appelez-nous -
18 327887 Drawer, Utility Appelez-nous -
19 307935 Panel Drawer (white) Appelez-nous -
19 246135 Panel, Drawer (screw, 8d X 5/16 (3)) Appelez-nous -
19 307939 Panel, Drawer (almond) Appelez-nous -
19 307938 Panel, Drawer (golden Harvest) Appelez-nous -
20 WP486255 Palnut, 8-32   (Replaces: 308542) Special Order $ 5.54

21 WP912618 Screw, 8d X 3/8 (3)   (Replaces: 308541) Special Order $ 6.98

21 307956 Handle, Drawer Appelez-nous -
22 WP308685 Screw, 10a X1/2   (Replaces: 253549) In-Stock Immediately $ 7.08

22 308028 Retainer, Seal (4) Appelez-nous -
23 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.07

23 327898 Panel, Inner Appelez-nous -
30 309056 Baffle, Heat Appelez-nous -
30 254217 Screw, 10a X 3/8 Appelez-nous -
30 WP90296 Push Nut   (Replaces: 308593) Special Order $ 7.07

31 309053 Frame, Top Appelez-nous -
32 309842 Glass, Tempered (6.81`` X 18.31``) Appelez-nous -
33 309843 Retainer, Glass Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

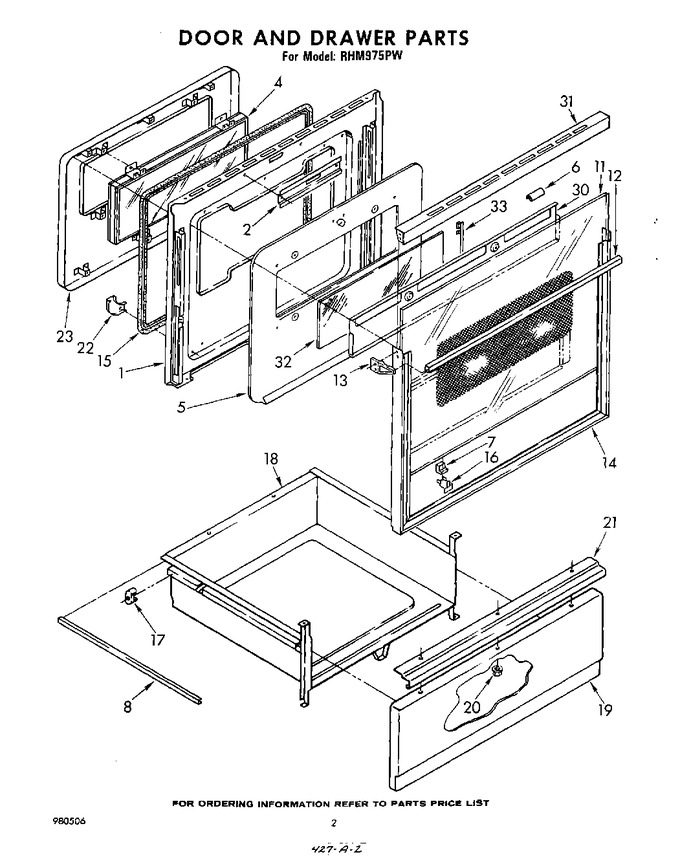

Diagram for RHM975PW
