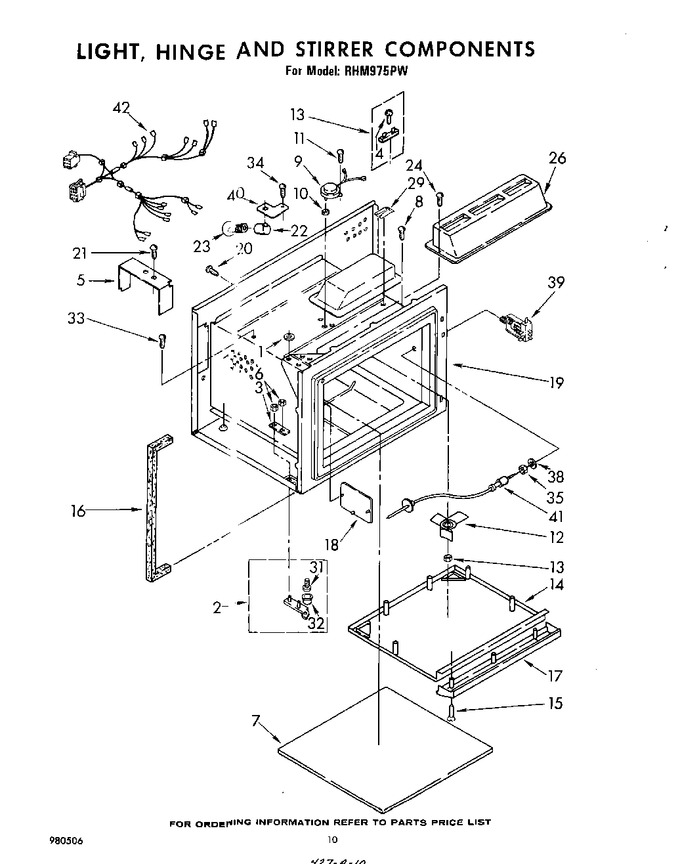

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 307539 | Washer |
|
- | |||||
| 2 | 328127 | Hinge, Door (bottom) |
|
- | |||||
| 2 | 328126 | Hinge, Door (top) |
|
- | |||||
| 3 | 307527 | Plate, Hinge |
|
- | |||||
| 4 | WP965173 | Screw, 8a X 3/8 (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 5 | 309554 | Shield, Lamp |
|
- | |||||
| 6 | 307555 | Xnut, Hex (1/4-20) (4) |
|
- | |||||
| 7 | 309145 | Base, Ceramic (install With Silastic No. 482338) |
|
- | |||||
| 8 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 9 | 309639 | Motor, Stirrer |
|
- | |||||
| 10 | 307651 | Gasket, Stirrer Motor |
|
- | |||||
| 11 | 246131 | Screw, 6a X 3/8 |
|
- | |||||
| 12 | 309368 | Stirrer, 3-blade |
|
- | |||||
| 13 | 309279 | Fuse, Thermal |
|
- | |||||
| 14 | 307511 | Cover, Stirrer |
|
- | |||||
| 15 | 308554 | Screw, 10a X 2 (3) |
|
- | |||||
| 16 | 309813 | Seal, Light |
|
- | |||||
| 17 | 307619 | Cover, Stirrer (front) |
|
- | |||||
| 18 | 307516 | Cover, Light |
|
- | |||||
| 20 | 258857 | Screw, 10-32 X 1/2 |
|
- | |||||
| 21 | 254217 | Screw, 10a X 3/8 |
|
- | |||||
| 22 | 307519 | Socket, Snap-in |
|
- | |||||
| 23 | 8009 | Bulb, Oven Light (Replaces: 247591) |
|
Immediately | $ 16.80 | ||||
| 24 | WP487353 | Screw, 6-18 X 3/8 (Replaces: 307842) |
|
$ 6.81 | |||||
| 26 | 307520 | Baffle, Air Exhaust |
|
- | |||||
| 29 | 308853 | Fastener, Slide |
|
- | |||||
| 31 | 308785 | Pin, Hinge |
|
- | |||||
| 32 | 309628 | Bushing |
|
- | |||||
| 33 | WP308685 | Screw (Replaces: 309234) |
|
Immediately | $ 7.08 | ||||
| 34 | 342043 | Screw |
|
- | |||||
| 35 | 309768 | Nut |
|
- | |||||
| 38 | 309769 | Washer |
|
- | |||||
| 39 | 309637 | Jack, Probe |
|
- | |||||
| 40 | 308417 | Bracket, Lamp |
|
- | |||||
| 41 | 309333 | Meat Probe & Plug Assembly |
|
- | |||||
| 42 | 309801 | Harness, Wiring (main) (microwave) |
|
- |
