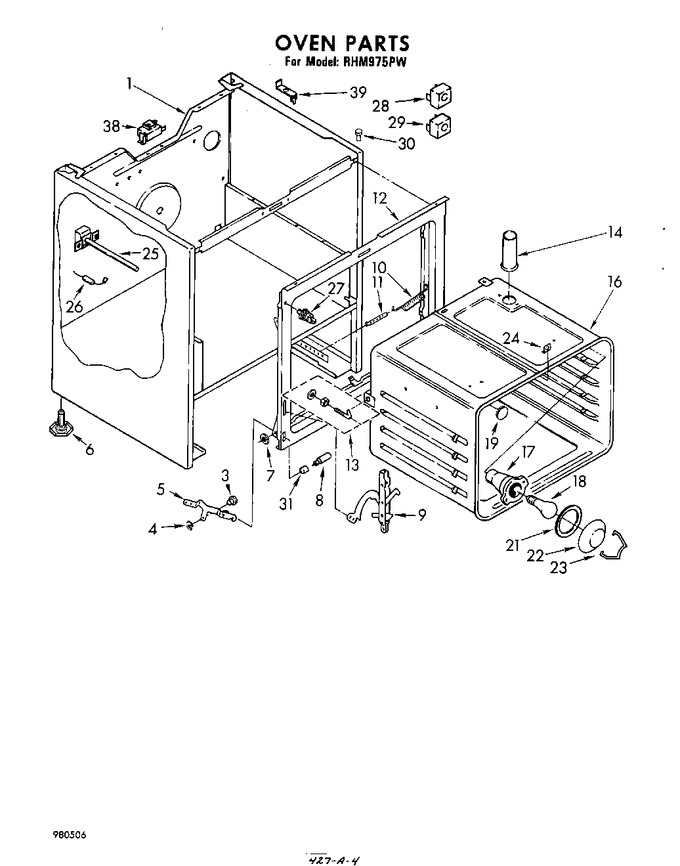

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327871		Main Chassis (white)		Appelez-nous	-
1	WP308544		Main Chassis (screw, 10-24 X 1/2)   (Replaces: 308544)			Immediately	$ 6.98
1	327875		Main Chassis (almond)		Appelez-nous	-
1	327874		Main Chassis (golden Harvest)		Appelez-nous	-
3	WP307986		Hinge Pin   (Replaces: 307986)				$ 11.78
4	307594		Ring, Retainer		Appelez-nous	-
5	327890		Hinge (r.h.)		Appelez-nous	-
5	258857		Screw, 10-32 X 1/2		Appelez-nous	-
5	327891		Hinge (l.h.)		Appelez-nous	-
6	WP233550		Leg Leveling (4)   (Replaces: 233550)				$ 7.16
7	308306		Pushnut		Appelez-nous	-
8	307985		Pin, Hinge				$ 29.54
9	327892		Channel Arm		Appelez-nous	-
10	WP308126		Spring, Oven Door   (Replaces: 308126)				$ 38.15
11	WP308125		Anchor, Spring   (Replaces: 308125)				$ 10.94
12	327886		Frame, Front		Appelez-nous	-
12	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
13	261883		Oven Mounting Kit		Appelez-nous	-
14	WP308685		Screw, 10a X1/2   (Replaces: 253549)			Immediately	$ 7.08
14	309025		Vent, Oven		Appelez-nous	-
16	328472		Oven		Appelez-nous	-
16	WP681414		Screw, 10-32 Hex   (Replaces: 343631)			Immediately	$ 7.07
16	254230		Screw, 10a X 1/2		Appelez-nous	-
17	310208		Socket, Lamp			Immediately	$ 36.34
17	308043		Screw, 10-12 X 5/8		Appelez-nous	-
18	8009		Bulb, Oven Light   (Replaces: 247591)			Immediately	$ 16.80
19	257314		Plug Button		Appelez-nous	-
21	308037		Gasket, Light		Appelez-nous	-
22	308039		Cover, Light		Appelez-nous	-
23	308038		Retainer, Light		Appelez-nous	-
24	307964		Clip, Oven		Appelez-nous	-
24	254230		Screw, 10a X 1/2		Appelez-nous	-
25	308315		Thermostat, Lock/clean		Appelez-nous	-
25	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
26	328139		Resistor & Terminal Assembly		Appelez-nous	-
27	308533		Switch, Plunger		Appelez-nous	-
28	308522		Switch, Broil		Appelez-nous	-
29	308536		Screw, 6a X 1 1/4 (2)		Appelez-nous	-
29	308523		Switch, Bake		Appelez-nous	-
30	238614		Bumper, Cooktop (2)   (Replaces: 309119)				$ 72.68
31	309111		Snubber, Door (2)		Appelez-nous	-
38	346772		Ballast		Appelez-nous	-
38	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
39	309102		Bracket Stand Off		Appelez-nous	-
39	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
