SELECT A DIAGRAM

02 - Door And Drawer


03 - Oven


04 - Section


05 - Cooktop


06 - Upper Chassis And Components


07 - Light, Hinge And Stirrer


08 - Control


09 - Microwave Door And Latch

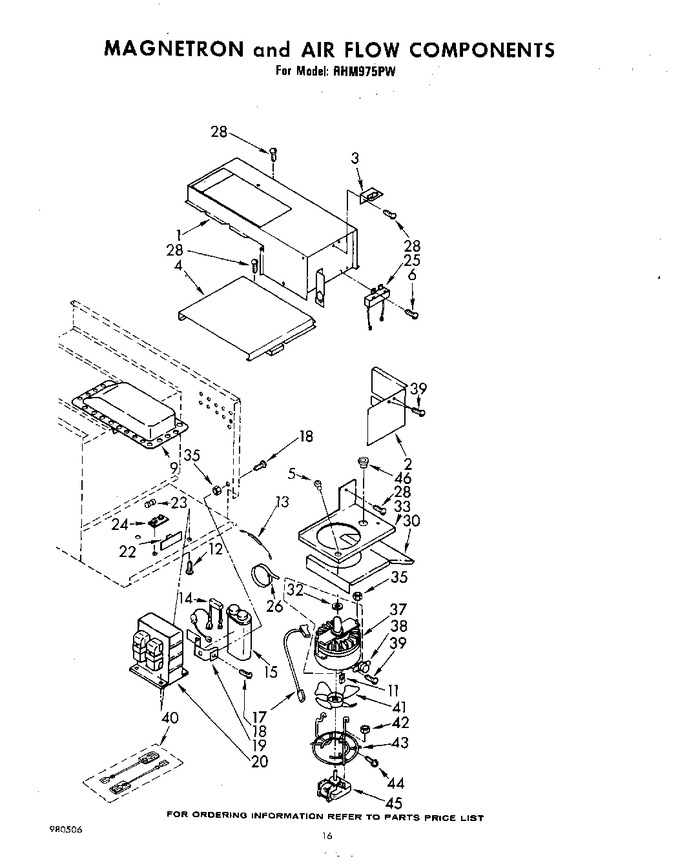

10 - Magnetron And Airflow , Not Illustr


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	328398		Duct, Cooling Air		Appelez-nous	-
2	309899		Baffle, Air		Appelez-nous	-
3	308839		Bracket, Receptacle		Appelez-nous	-
4	328399		Duct, Discharge		Appelez-nous	-
5	308410		Bushing, Wire		Appelez-nous	-
6	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
11	338177		Clip		Appelez-nous	-
12	258857		Screw, 10-32 X 1/2 (4)		Appelez-nous	-
13	328185		Varistor Assembly		Appelez-nous	-
14	328057		Rectifier, High Voltage (includes Illus. 13)		Appelez-nous	-
15	309587		Capacitor		Appelez-nous	-
17	309084		Wire, High Voltage (capacitor)		Appelez-nous	-
18	258857		Screw, 10-32 X 1/2		Appelez-nous	-
19	308572		Bracket, Capacitor		Appelez-nous	-
20	307676		Transformer		Appelez-nous	-
22	310391		Shield, Fuse		Appelez-nous	-
23	WPW10017410		Fuse   (Replaces: 309796)			Immediately	$ 19.05
24	309795		Block, Fuse		Appelez-nous	-
25	309623		Relay, Reed		Appelez-nous	-
26	WPW10339879		Tie Cable   (Replaces: 309330)				$ 7.11
28	254217		Screw, 10a X 3/8		Appelez-nous	-
30	311084		Shield, Magnetron (use W/panasonic Magnetron)		Appelez-nous	-
32	310302		Gasket, Magnetron (use W/panasonic Magnetron)		Appelez-nous	-
32	307849		Gasket, Magnetron (use W/litton Magnetron)		Appelez-nous	-
33	309477		Duct, Bottom Air		Appelez-nous	-
35	WP112432		Nut, Mounting (nut, 10-32 Hex (2) (use W/litton Magnetron))   (Replaces: 112432)				$ 7.16
35	310300		Nut, Mounting (nut, 5mm-0.8 Flange (2) (use W/panasonic Magnetron))		Appelez-nous	-
37	832806		Magnetron Kit, Panasonic		Appelez-nous	-
38	307564		Thermostat		Appelez-nous	-
39	246131		Screw, 6a X 3/8		Appelez-nous	-
40	261945		Wire, High Voltage Magnetron (2) (use W/litton Magnetron)		Appelez-nous	-
40	311144		Wire, High Voltage Magnetron (2) (use W/panasonic Magnetron)		Appelez-nous	-
41	307535		Blade, Fan		Appelez-nous	-
42	309486		Nut		Appelez-nous	-
43	307534		Mount, Fan Motor		Appelez-nous	-
44	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
45	309849		Motor, Fan		Appelez-nous	-
46	980506		List, Repair Parts		Appelez-nous	-
46	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
46	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
46	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
46	309552		Bushing, Wire		Appelez-nous	-
46	253881		Wire, 14 Ga. (white) (25 Ft.)		Appelez-nous	-
46	253882		Wire, 14 Ga. (black) (25 Ft.)		Appelez-nous	-
46	253883		Wire, 14 Ga. (red) (25 Ft.)		Appelez-nous	-
46	253893		Wire, 14 Ga. (blue) (25 Ft.)		Appelez-nous	-
46	253894		Wire, 14 Ga. (orange) (25 Ft.)		Appelez-nous	-
46	253897		Wire, 16 Ga. (black) (25 Ft.)		Appelez-nous	-
46	253900		Wire, 16 Ga. (red) (25 Ft.)		Appelez-nous	-
46	253901		Wire, 16 Ga. (white) (25 Ft.)		Appelez-nous	-
46	253879		Wire, 18 Ga. (red) (25 Ft.)		Appelez-nous	-
46	253895		Wire, 18 Ga. (black) (25 Ft.)		Appelez-nous	-
46	253896		Wire, 18 Ga. (white) (25 Ft.)		Appelez-nous	-
46	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
46	WP261869		Citrine White (microwave)   (Replaces: 261869)				$ 23.85
46	254323		Touch-up, Oven (self-clean)		Appelez-nous	-
46	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
46	350942		Primer (white)   (Replaces: 206922)				$ 80.69
46	206925		Leveler, Enamel		Appelez-nous	-
46	261890		Golden Harvest		Appelez-nous	-
46	285006		Enamel, Black   (Replaces: 799339)			Immediately	$ 51.34
46	350930		White   (Replaces: 799343)			Immediately	$ 34.39
46	261900		Citrine White (6 Oz.)				$ 51.34
46	310847		Cookbook (microwave)		Appelez-nous	-
46	308500		Book, Cooking Guide		Appelez-nous	-
46	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
46	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
46	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
46	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
46	261582		Grease		Appelez-nous	-
46	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
46	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
46	WP75614		Line, Splice (5)   (Replaces: 309551)				$ 44.41
46	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
46	310220		Tech Sheet (service Information)		Appelez-nous	-
46	310053		Installation Instructions		Appelez-nous	-
46	309296		Use & Care Guide		Appelez-nous	-
46	309600		Booklet, Probe		Appelez-nous	-
	261891		Xgolden Harvest		Appelez-nous	-
	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	978883		Almond		Appelez-nous	-
