Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 309507 Cover, Top Wire Appelez-nous -
1 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.07

2 Y308109 Tubing, Support L.h.   (Replaces: 308109) Special Order $ 53.59

2 308111 Support, Tubing R.h. Appelez-nous -
3 WP488627 Panel, Side R.s. (screw, 8a X 1/2)   (Replaces: 338156) Special Order $ 6.81

3 309100 Panel, Side R.s. (screw, 10a X 1/2) Appelez-nous -
3 309523 Panel, Side R.s. (almond) Appelez-nous -
3 309522 Panel, Side R.s. (golden Harvest) Appelez-nous -
3 309521 Panel, Side R.s. (coffee) Appelez-nous -
3 309520 Pane, Side R.s. (new Avocado) Appelez-nous -
3 309519 Panel, Side R.s. (white) Appelez-nous -
3 308883 Panel, Side R.s. (almond Panel, Side L.s.) Appelez-nous -
3 308882 Panel, Side R.s. (golden Harvest) Appelez-nous -
3 308881 Panel, Side R.s. (coffee) Appelez-nous -
3 308880 Panel, Side R.s. (new Avocado) Appelez-nous -
3 308879 Panel, Side R.s. (white) Appelez-nous -
3 WP308544 Panel, Side R.s. (screw, 10-24 X 1/2)   (Replaces: 308544) In-Stock Immediately $ 6.98

4 308877 Gusset, L.h. Appelez-nous -
4 WP308544 Screw, 10-24 X 1/2   (Replaces: 308544) In-Stock Immediately $ 6.98

4 309062 Clip, ``j`` Appelez-nous -
4 308875 Gusset, R.h. Appelez-nous -
5 328397 Frame, Oven Support Appelez-nous -
5 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.07

5 WP308544 Screw, 10-24 X 1/2   (Replaces: 308544) In-Stock Immediately $ 6.98

6 328277 Socket Assembly, R.h. Appelez-nous -
6 310803 Socket Assembly, L. H. Appelez-nous -
6 246131 Screw, 6a X 3/8 (2) Appelez-nous -
7 WP308544 Trim, End R.h. (screw, 10-24 X 1/2)   (Replaces: 308544) In-Stock Immediately $ 6.98

7 328141 Trim, End R.h. (white) Appelez-nous -
7 328142 Trim, End R.h. (new Avocado) Appelez-nous -
7 328143 Trim, End R.h. (coffee) Appelez-nous -
7 328144 Trim, End R.h. (golden Harvest) Appelez-nous -
7 328150 Trim, End R.h. (almond Trim, End L.h.) Appelez-nous -
7 328154 Trim, End R.h. (almond) Appelez-nous -
7 308980 Trim, End R.h. (spacer) Appelez-nous -
7 310304 Trim, End R.h. (screw, 10-32) Appelez-nous -
7 308043 Trim, End R.h. (screw, 10a X 7/8 (2)) Appelez-nous -
7 328146 Trim, End R.h. (white) Appelez-nous -
7 328147 Trim, End R.h. (new Avocado) Appelez-nous -
7 328148 Trim, End R.h. (coffee) Appelez-nous -
7 328149 Trim, End R.h. (golden Harvest) Appelez-nous -
8 WP308544 Screw, 10-24 X 1/2   (Replaces: 308544) In-Stock Immediately $ 6.98

8 308692 Panel, Backguard Appelez-nous -
9 308894 Spring, Retainer Glass Appelez-nous -
9 WP965173 Screw, 8a X 3/8   (Replaces: 246132) In-Stock Immediately $ 9.65

10 WP95292 Lamp, Fluorescent   (Replaces: 95292) In-Stock Immediately $ 121.45

11 309051 Screw, 8a X 3/8 Appelez-nous -
11 309501 Trim, Top Appelez-nous -
12 309511 Panel, Top (coffee) Appelez-nous -
12 309512 Panel, Top (golden Harvest) Appelez-nous -
12 309510 Panel, Top (new Avocado) Appelez-nous -
12 309509 Panel, Top (white) Appelez-nous -
12 309513 Panel, Top (almond) Appelez-nous -
12 WP488627 Panel, Top (screw (8))   (Replaces: 338156) Special Order $ 6.81

13 254217 Screw, 10a X 3/8 Appelez-nous -
13 309144 Strip, Barrier Appelez-nous -
13 309211 Clip (2) Appelez-nous -
15 309483 Bracket, Support Appelez-nous -
15 WP308544 Screw, 10-24 X 1/2   (Replaces: 308544) In-Stock Immediately $ 6.98

17 309629 Bracket, Side Panel Appelez-nous -
17 WP965173 Screw, 8a X 3/8   (Replaces: 246132) In-Stock Immediately $ 9.65

21 WP308544 Screw, 10-24 X 1/2   (Replaces: 308544) In-Stock Immediately $ 6.98

21 308776 Brace Appelez-nous -
22 WP308544 Screw, 10-24 X 1/2   (Replaces: 308544) In-Stock Immediately $ 6.98

22 309454 Bracket, Frame (3) Appelez-nous -
23 309506 Panel, Bottom Appelez-nous -
24 WP488627 Screw, 8a X 1/2   (Replaces: 338156) Special Order $ 6.81

24 308896 Trim, Glass (rear) Appelez-nous -
25 328306 Panel, Glass Assembly Appelez-nous -
26 308897 Trim, Glass (front) Appelez-nous -
26 WP488627 Screw, 8a X 1/2   (Replaces: 338156) Special Order $ 6.81

29 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.07

29 WP308544 Screw, 10-24 X 1/2   (Replaces: 308544) In-Stock Immediately $ 6.98

29 308112 Cover, Rear Appelez-nous -
31 308297 Seal, Foam Appelez-nous -
32 309552 Bushing, Wire Appelez-nous -
33 309455 Bracket, Switch Appelez-nous -
33 WP308544 Screw, 10-24 X 1/2   (Replaces: 308544) In-Stock Immediately $ 6.98

34 309549 Switch, Oven Light Appelez-nous -
34 255912 Nut, 3/8-27 Appelez-nous -
35 309550 Switch, Top Light Appelez-nous -
36 309452 Bracket, Control Panel Mounting Appelez-nous -
37 WP488627 Screw, 8a X 1/2 (6)   (Replaces: 338156) Special Order $ 6.81

37 309500 Frame, Outer Appelez-nous -
38 309499 Deflector, Air Appelez-nous -
39 WP90296 Push Nut   (Replaces: 308593) Special Order $ 7.07

40 308784 Bezel, Switch (2) Appelez-nous -
41 309453 Bracket, Chassis Mounting Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

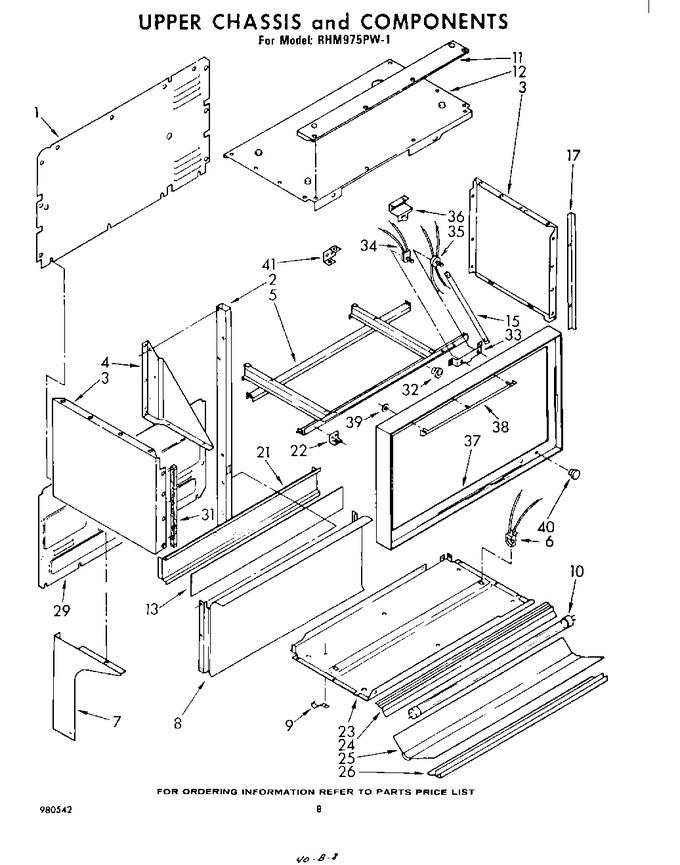

Diagram for RHM975PW1
