RHM975PW1 | TransGlobal : Appliance Model Lookup

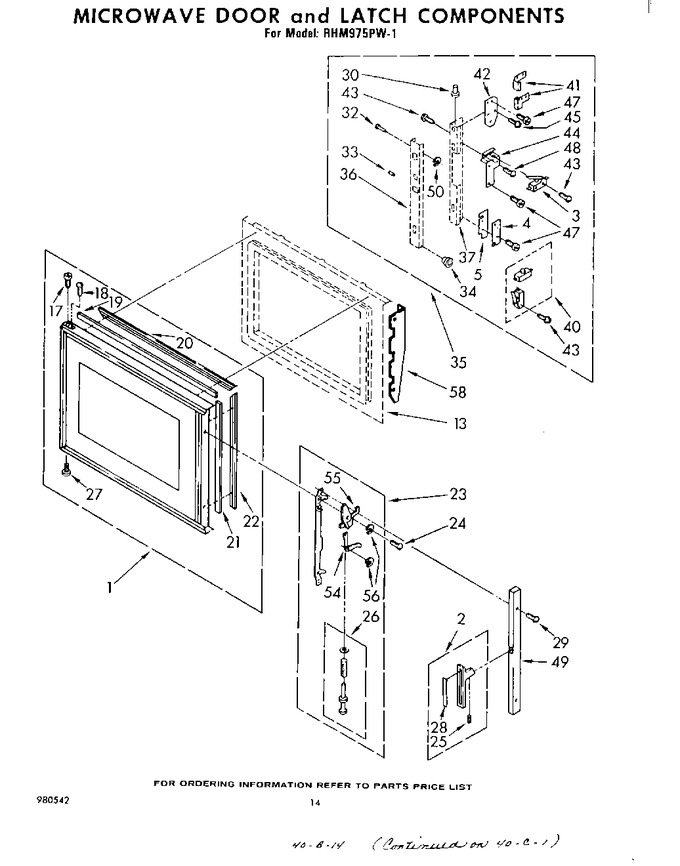

Diagram #	Part Number	Description	Availability	Ships
1	328949	Door, Assembly	Appelez-nous	-
2	328943	Handle, Door	Appelez-nous	-
3	308416	Switch, Secondary	Appelez-nous	-
4	307836	Plate, Switch Mounting	Appelez-nous	-
5	307835	Insulator, Switch	Appelez-nous	-
13	N/A	Cabinet (not A Serviceable Part)	Appelez-nous	-
17	307536	Screw, 8d X .312 (2)	Appelez-nous	-
18	307537	Xscrew, 8-32 X .312 (6)	Appelez-nous	-
19	307544	Seal, Top & Bottom (2)	Appelez-nous	-
20	307545	Retainer, Top & Bottom Seal (2)	Appelez-nous	-
21	307543	Seal, Side (2)	Appelez-nous	-
22	307546	Retainer, Side Seal (2)	Appelez-nous	-
23	328944	Latch, Door	Appelez-nous	-
24	309080	Screw, 8-32 X 3/8 (2)	Appelez-nous	-
25	307577	Setscrew, 8-32	Appelez-nous	-
26	832797	Toggle, Latch	Appelez-nous	-
27	308785	Pin, Hinge	Appelez-nous	-
28	309564	Insert	Appelez-nous	-
29	310210	Screw, 8-32 X .281 (2)	Appelez-nous	-
30	307578	Bumper	Appelez-nous	-
32	307603	Pin, Roller	Appelez-nous	-
33	307612	Pin, Straight	Appelez-nous	-
34	258666	Spacer (4)	Appelez-nous	-
35	328919	Interlock Assembly	Appelez-nous	-
40	261877	Switch Kit, Door (kit Contains 2 Switches, Both Switches Must Be Replaced If One Fails) Note: Fuse 3	Appelez-nous	-
41	307611	Insulator, Switch (top)	Appelez-nous	-
42	307586	Plate, Top Switch Mounting	Appelez-nous	-
43	98106	Screw, 6-32 X 7/8 (6)	Appelez-nous	-
44	310148	Bracket, Switch	Appelez-nous	-
45	309080	Screw, 8-32 X 3/8 (2)	Appelez-nous	-
47	310629	Screw, 8-32 X 1/2	Appelez-nous	-
48	246135	Screw, 8d X 5/16	Appelez-nous	-
49	307584	End Cap, Door	Appelez-nous	-
50	307605	Ring, Retaining (2)	Appelez-nous	-
54	307596	Latch, Concealed	Appelez-nous	-
55	310729	Handle, Cam	Appelez-nous	-
56	308187	Ring, ``e`` (2)	Appelez-nous	-
58	309963	Shield, Light	Appelez-nous	-
