SELECT A DIAGRAM

02 - Door And Drawer


03 - Oven


04 - Section


05 - Cooktop


06 - Upper Chassis


07 - Light, Hinge And Stirrer


08 - Controls


09 - Microwave Door And Latch


10 - Magnetron And Air Flow , Literature


11 - Wiring Harness

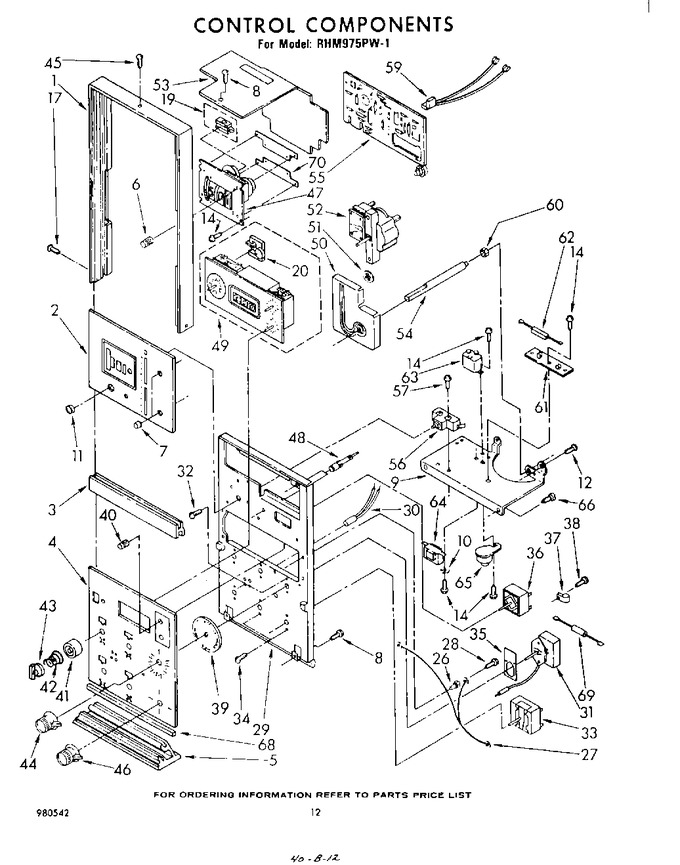

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309608		Frame, Control Panel		Appelez-nous	-
2	309886		Panel, Control (upper)		Appelez-nous	-
3	309490		Splice, Panel		Appelez-nous	-
4	310904		Panel, Glass (lower)		Appelez-nous	-
5	309609		Cap, Control Panel		Appelez-nous	-
6	307615		Knob, Digital		Appelez-nous	-
7	307673		Knob Assembly (2)		Appelez-nous	-
8	WP486754		Screw, 6-32 X 1/4   (Replaces: 246119)				$ 6.75
9	309484		Bracket, P.c. Board		Appelez-nous	-
10	138473		Lockwasher		Appelez-nous	-
11	309563		Button, Push-to-start		Appelez-nous	-
12	309080		Screw 8-32 X 3/8		Appelez-nous	-
14	309258		Screw, 6 X 3/8b		Appelez-nous	-
17	348689		Screw				$ 66.92
19	261882		Switch Kit For Timer		Appelez-nous	-
20	308594		Motor, Timer		Appelez-nous	-
26	309645		Nut, Extension		Appelez-nous	-
27	309841		Cable, Support		Appelez-nous	-
28	166681		Screw, 10-32 X 5/16		Appelez-nous	-
29	328136		Bracket, Control Mounting		Appelez-nous	-
30	309562		Light, Indicator 250v (7)		Appelez-nous	-
31	310023		Thermostat (lower Oven)		Appelez-nous	-
32	487384		Screw, 6-32 X 1/4		Appelez-nous	-
33	310007		Switch, Selector		Appelez-nous	-
34	308119		Screw, 8-32 X 3/16		Appelez-nous	-
35	310054		Insulator		Appelez-nous	-
36	308119		Screw, 8-32 X 3/16 (8)		Appelez-nous	-
36	308475		Switch, Surface Unit (4)		Appelez-nous	-
37	WP308605		Strain Relief (2) (no.8)   (Replaces: 308605)				$ 10.08
37	WP308605		Strain Relief (1) (no.4)   (Replaces: 308604)				$ 10.08
38	W11693756		Screw, 8a X 5/8   (Replaces: 258665)			Immediately	$ 12.65
39	309489		Dial, Surface Units (4)		Appelez-nous	-
40	309553		Knob, Timer (3)		Appelez-nous	-
41	309556		Bezel, Knob (4)		Appelez-nous	-
42	308348		Spring, Bezel		Appelez-nous	-
43	308346		Knob, Surface Units (4)		Appelez-nous	-
44	328709		Knob, Thermostat		Appelez-nous	-
45	WP488627		Screw   (Replaces: 342055)				$ 6.81
46	328707		Knob, Selector		Appelez-nous	-
47	310127		Timer, Digital (microwave)		Appelez-nous	-
48	309561		Light, Indicator 125v (2)		Appelez-nous	-
49	310325		Timer, Digital (oven)		Appelez-nous	-
50	309541		Indicator, Information Control		Appelez-nous	-
51	309983		Clip, Push-on (3)		Appelez-nous	-
52	309548		Indicator, Temperature		Appelez-nous	-
52	254225		Screw 8bt X 1/4 (2)		Appelez-nous	-
53	328431		Shield Assembly		Appelez-nous	-
54	310279		Shaft, Potentiometer		Appelez-nous	-
55	60757		Control, Variable Power		Appelez-nous	-
56	307649		Switch, Push-start (includes Illus. 11)		Appelez-nous	-
57	98106		Screw		Appelez-nous	-
59	310320		Harness, Variable Power Control		Appelez-nous	-
60	307640		Palnut		Appelez-nous	-
61	309642		Board, Terminal		Appelez-nous	-
62	328023		Resistor, Power		Appelez-nous	-
63	308243		Relay Shunt		Appelez-nous	-
64	308308		Transformer		Appelez-nous	-
65	310351		Buzzer, End-of-cycle		Appelez-nous	-
66	254225		Screw, 8bt X 1/4		Appelez-nous	-
68	308297		Seal, Foam		Appelez-nous	-
69	328923		Resistor & Terminal		Appelez-nous	-
70	98520		Screw (2)		Appelez-nous	-
70	WP3390631		Screw (2)   (Replaces: 339554)				$ 7.04
70	311224		Plate (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
