SELECT A DIAGRAM
New Model Search:

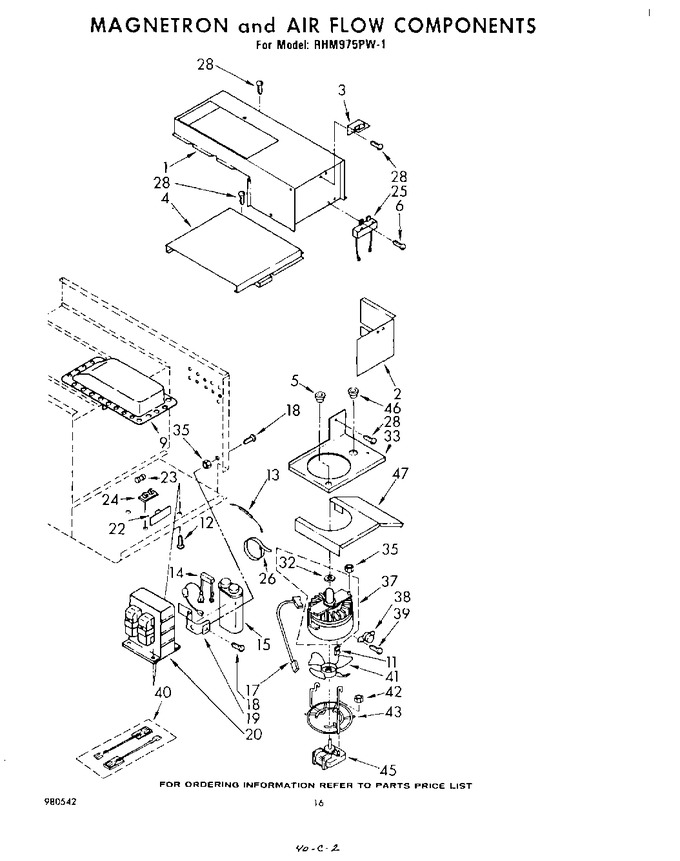

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 328913 | Duct, Cooling Air |
|
- | |||||
| 2 | 309899 | Baffle, Air |
|
- | |||||
| 3 | 308839 | Bracket, Receptacle |
|
- | |||||
| 4 | 328399 | Duct, Discharge |
|
- | |||||
| 5 | 308410 | Bushing, Wire |
|
- | |||||
| 6 | WP965173 | Screw, 8a X 3/8 (2) (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 11 | 338177 | Clip |
|
- | |||||
| 12 | 258857 | Screw, 10-32 X 1/2 (4) |
|
- | |||||
| 13 | 328185 | Varistor Assembly |
|
- | |||||
| 14 | 261894 | Rectifier, High Voltage (includes Illus. 13) |
|
- | |||||
| 15 | 310625 | Capacitor (alternate) |
|
- | |||||
| 15 | 310418 | Capacitor (alternate) |
|
- | |||||
| 17 | 309084 | Wire, High Voltage (capacitor) |
|
- | |||||
| 18 | 258857 | Screw, 10-32 X 1/2 |
|
- | |||||
| 19 | 308572 | Bracket, Capacitor |
|
- | |||||
| 20 | 307676 | Transformer |
|
- | |||||
| 22 | 310391 | Shield, Fuse |
|
- | |||||
| 23 | WPW10017410 | Fuse (Replaces: 309796) |
|
Immediately | $ 19.05 | ||||
| 24 | 309795 | Block, Fuse |
|
- | |||||
| 25 | 309623 | Relay, Reed |
|
- | |||||
| 26 | WPW10339879 | Tie Cable (Replaces: 309330) |
|
$ 7.11 | |||||
| 28 | 254217 | Screw, 10a X 3/8 |
|
- | |||||
| 32 | 307849 | Gasket, Magnetron |
|
- | |||||
| 33 | 309477 | Duct, Bottom Air |
|
- | |||||
| 35 | 309487 | Hex Nut, 10-32 (2) |
|
- | |||||
| 37 | 310299 | Magnetron |
|
- | |||||
| 38 | 307564 | Thermostat |
|
- | |||||
| 39 | 246131 | Screw, 6a X 3/8 |
|
- | |||||
| 40 | 261945 | Wire Kit, High Voltage (magnetron) |
|
- | |||||
| 41 | 307535 | Blade, Fan |
|
- | |||||
| 42 | 311136 | Nut |
|
- | |||||
| 43 | 310414 | Mount, Fan Motor |
|
- | |||||
| 45 | 310921 | Motor, Fan (alternate) |
|
- | |||||
| 45 | 310221 | Motor Fan (alternate) |
|
- | |||||
| 46 | 309552 | Bushing, Wire |
|
- | |||||
| 47 | 980542 | List, Repair Parts |
|
- | |||||
| 47 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | |||||
| 47 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 47 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 47 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 47 | 311084 | Shield, Magnetron |
|
- | |||||
| 47 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 47 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 47 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 47 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 47 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 47 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 47 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 47 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 47 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 47 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 47 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 47 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 47 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 98.33 | |||||
| 47 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 54.25 | |||||
| 47 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 47 | WP261869 | Citrine White (microwave) (Replaces: 261869) |
|
$ 23.85 | |||||
| 47 | 254323 | Touch-up, Oven (self-clean) |
|
- | |||||
| 47 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | |||||
| 47 | 350942 | Primer (white) (Replaces: 206922) |
|
$ 80.69 | |||||
| 47 | 206925 | Leveler, Enamel |
|
- | |||||
| 47 | 261886 | Coffee |
|
- | |||||
| 47 | 261888 | New Avocado |
|
- | |||||
| 47 | 261890 | Golden Harvest |
|
- | |||||
| 47 | 285006 | Enamel, Black (Replaces: 799339) |
|
Immediately | $ 51.34 | ||||
| 47 | 350930 | White (Replaces: 799343) |
|
Immediately | $ 34.39 | ||||
| 47 | 261900 | Citrine White (5 Oz.) |
|
$ 51.34 | |||||
| 47 | 310847 | Cookbook (microwave) |
|
- | |||||
| 47 | 308500 | Book, Cooking Guide |
|
- | |||||
| 47 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 47 | 799351 | Blend, Thinner (1 Gal.) |
|
- | |||||
| 47 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | ||||
| 47 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | ||||
| 47 | 261582 | Grease |
|
- | |||||
| 47 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | ||||
| 47 | 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | |||||
| 47 | WP75614 | Line, Splice (5) (Replaces: 309551) |
|
$ 44.41 | |||||
| 47 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 47 | 310081 | Tech Sheet |
|
- | |||||
| 47 | 310053 | Installation Instructions |
|
- | |||||
| 47 | 310885 | Use & Care Guide |
|
- | |||||
| 47 | 309600 | Booklet, Probe |
|
- | |||||
| 261889 | Xnew Avocado |
|
- | ||||||
| 261887 | Xcoffee |
|
- | ||||||
| 978883 | Almond |
|
- | ||||||
| 261891 | Xgolden Harvest |
|
- | ||||||
| 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 |
