SELECT A DIAGRAM

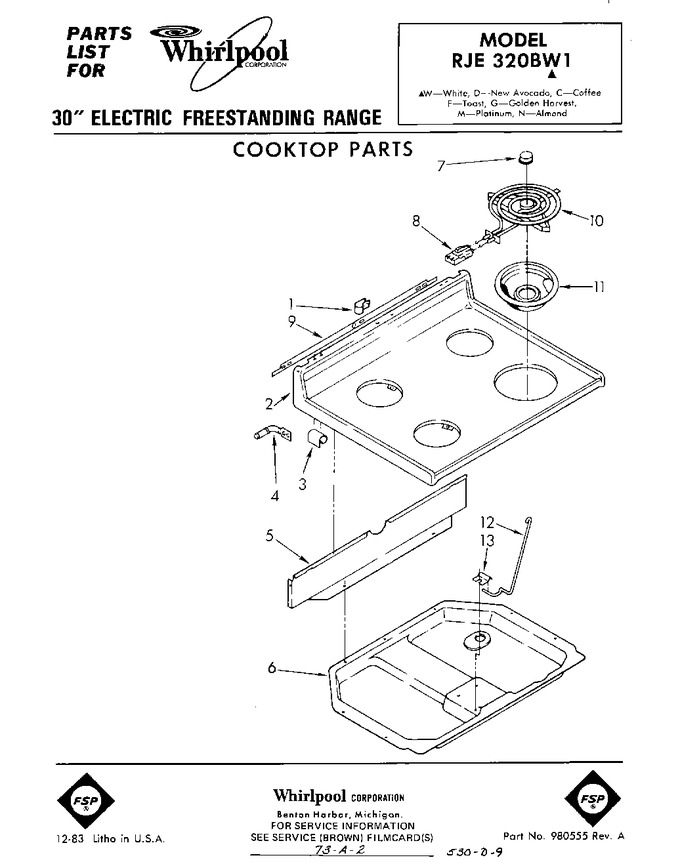

01 - Cooktop
02 - Door And Drawer
03 - Oven
04 - Literature And Optional
05 - Control Panel
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 10.08 | |||||
| 1 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 2 | 313167 | Cooktop (toast) |
|
- | |||||
| 2 | 313168 | Cooktop (platinum) |
|
- | |||||
| 2 | 307870 | Cooktop (white) |
|
- | |||||
| 2 | 307869 | Cooktop (new Avocado) |
|
- | |||||
| 2 | 307867 | Cooktop (golden Harvest) |
|
- | |||||
| 2 | 307868 | Cooktop (coffee) |
|
- | |||||
| 2 | 307872 | Cooktop (almond) |
|
- | |||||
| 3 | 307965 | Bracket, Cooktop |
|
- | |||||
| 3 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 4 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 4 | 307966 | Hinge Pin, Cooktop |
|
- | |||||
| 5 | 307973 | Shield, Wiring |
|
- | |||||
| 5 | WP681414 | Screw, 10-16 X 1/2 (2) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 6 | WP3390631 | Screw, 10a X 3/8 (4) (Replaces: 309112) |
|
$ 7.04 | |||||
| 6 | 307929 | Burner Box |
|
- | |||||
| 7 | 309926 | Medallion (4) |
|
- | |||||
| 8 | 330031 | Receptacle Clip (4) (Replaces: 258858) |
|
Immediately | $ 14.48 | ||||
| 8 | WP313808 | Screw 6-32 X 1/4 (4) (Replaces: 311932) |
|
$ 6.84 | |||||
| 9 | 309232 | Barrier |
|
- | |||||
| 10 | WP660532 | Unit, Surface (6`` L.f., R.r. & L.r. (alternate)) (Replaces: 309249) |
|
Immediately | $ 36.90 | ||||
| 10 | WP660533 | Unit, Surface (8`` R.f. (alternate)) (Replaces: 309185) |
|
Immediately | $ 39.47 | ||||
| 10 | WP660533 | Unit, Surface (8`` R.f. (alternate) (includes Illus. 7)) (Replaces: 309216) |
|
Immediately | $ 39.47 | ||||
| 10 | WP660532 | Unit, Surface (6`` L.f., R.r. & L.r. (alternate)) (Replaces: 309191) |
|
Immediately | $ 36.90 | ||||
| 11 | W10196405RW | Pan (8`` (1)) (Replaces: 308540) |
|
Immediately | $ 18.70 | ||||
| 11 | WPW10196406 | Pan (6`` (3)) (Replaces: 308539) |
|
Immediately | $ 12.05 | ||||
| 12 | 307968 | Rod, Cooktop |
|
- | |||||
| 13 | 307967 | Retainer, Cooktop |
|
- | |||||
| 13 | WP3390631 | Screw, 10a X 3/8 (Replaces: 309112) |
|
$ 7.04 |
