01 - Cooktop
02 - Door And Drawer
03 - Oven
04 - Literature And Optional
05 - Control Panel
SELECT A DIAGRAM
New Model Search:

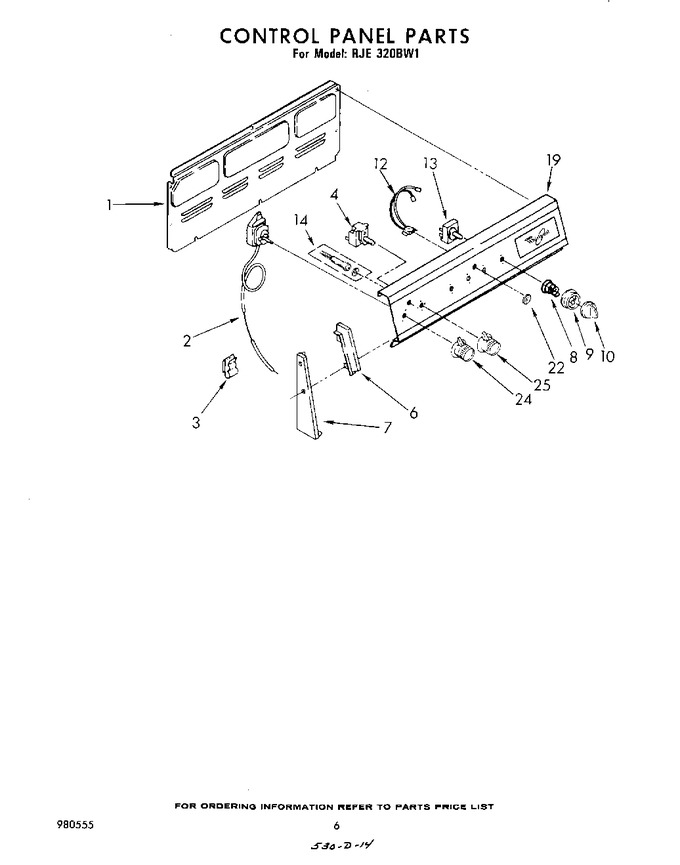

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 308157 | Cover, Rear |
|
- | |||||
| 1 | WP681414 | Screw, 10-16 X 1/2 (8) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 2 | 487384 | Thermostat, Oven (screw, 6-32 X 1/2) |
|
- | |||||
| 2 | 308789 | Thermostat, Oven (alternate) |
|
- | |||||
| 2 | 308483 | Thermostat, Oven (alternate) |
|
- | |||||
| 3 | 309211 | Clip, Tube |
|
- | |||||
| 4 | WP486579 | Screw, 8-32 X 1/4 (2) (Replaces: 311865) |
|
$ 6.61 | |||||
| 4 | 310348 | Switch, Selector |
|
- | |||||
| 6 | 312866 | End Cap, L.h. |
|
- | |||||
| 6 | WP488627 | Screw, 8a X 1/2 (2) (Replaces: 338156) |
|
$ 6.81 | |||||
| 6 | 312864 | End Cap, R.h. |
|
- | |||||
| 7 | WP3390631 | Screw, 10a X 3/8 (2) (Replaces: 309112) |
|
$ 7.04 | |||||
| 7 | 308854 | End Trim (r.h.) |
|
- | |||||
| 7 | 308858 | End Trim (l.h.) |
|
- | |||||
| 7 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 8 | 307828 | Spring, Bezel (4) |
|
- | |||||
| 9 | 307456 | Bezel, Control Knob (4) |
|
$ 31.10 | |||||
| 10 | WP307458 | Knob, Control (4) (Replaces: 307458) |
|
$ 17.20 | |||||
| 12 | 312861 | Light, Indicator (surface Unit) (includes Illus. 22) |
|
- | |||||
| 13 | WP486579 | Switch, Infinite (screw, 8-32 X 1/4 (8)) (Replaces: 311865) |
|
$ 6.61 | |||||
| 13 | W10900107 | Switch, Infinite (use W/8`` Surface Unit) (Replaces: 311838) |
|
Immediately | $ 51.87 | ||||
| 13 | W10900107 | Switch, Infinite (use W/6`` Surface Unit) (Replaces: 311839) |
|
Immediately | $ 51.87 | ||||
| 14 | 310393 | Light, Indicator (oven) |
|
- | |||||
| 19 | WP681414 | Control Panel (screw, 10-32 X 1/2 (3)) (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 19 | 312604 | Control Panel (screw, 8-18 X 5/8 (4)) |
|
- | |||||
| 19 | 313160 | Control Panel (platinum) |
|
- | |||||
| 19 | 313159 | Control Panel (toast) |
|
- | |||||
| 19 | 312506 | Control Panel (coffee) |
|
- | |||||
| 19 | 312505 | Control Panel (almond) |
|
$ 421.96 | |||||
| 19 | 312504 | Control Panel (harvest Gold) |
|
- | |||||
| 19 | 312503 | Control Panel (new Avocado) |
|
- | |||||
| 19 | 312502 | Control Panel (white) |
|
- | |||||
| 19 | W11693756 | Control Panel (screw, 8-18 X 5/8 (2)) (Replaces: 357670) |
|
Immediately | $ 12.65 | ||||
| 22 | 309221 | Lens, Red |
|
- | |||||
| 24 | 328709 | Knob, Thermostat |
|
- | |||||
| 25 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 7.03 | ||||
| 25 | 328707 | Knob, Selector |
|
- |
