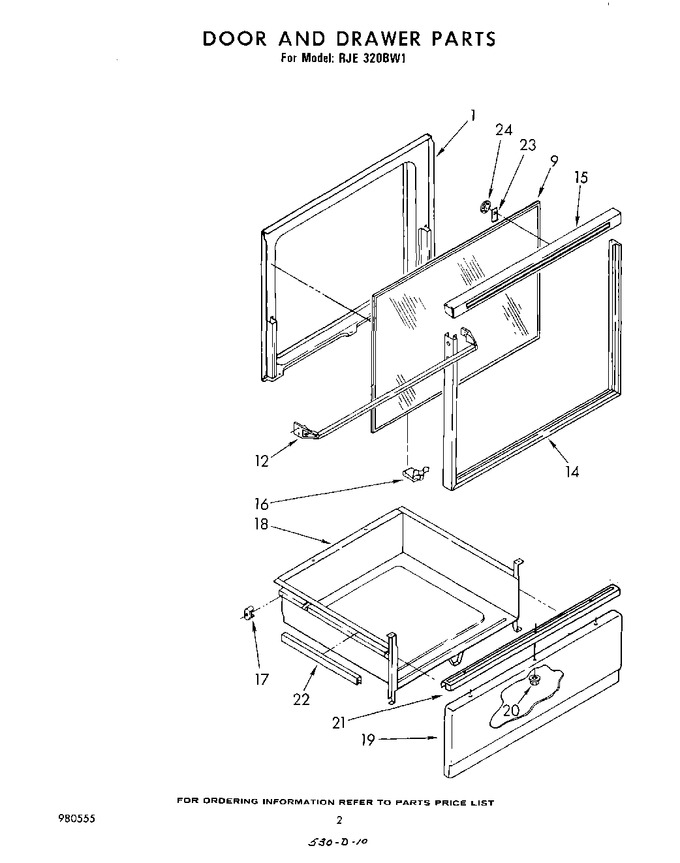

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307748		Screw, 10a X 1/2 (5)		Appelez-nous	-
1	329686		Liner, Door		Appelez-nous	-
9	00573829		Glass, Outer   (Replaces: 310655)			Immediately	$ 27.48
12	WP355515		Screw, 8a X 7/8 (4)   (Replaces: 355515)				$ 6.90
12	312722		Handle, Oven Door				$ 118.10
14	310427		Frame, Door		Appelez-nous	-
15	310784		Top, Door Frame		Appelez-nous	-
15	WP90296		Clip (2)   (Replaces: 90296)				$ 7.07
16	310706		Clip, Glass (10)		Appelez-nous	-
17	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
17	307980		Glide, Rear		Appelez-nous	-
18	327887		Drawer, Utility		Appelez-nous	-
19	307936		Panel, Drawer (new Avocado)		Appelez-nous	-
19	307935		Panel Drawer (white)		Appelez-nous	-
19	307937		Panel, Drawer (coffee)		Appelez-nous	-
19	307938		Panel Drawer (harvest Gold)		Appelez-nous	-
19	307939		Panel, Drawer (almond)		Appelez-nous	-
19	313171		Panel, Drawer (toast)		Appelez-nous	-
19	313172		Panel, Drawer (platinum)		Appelez-nous	-
19	WP488787		Panel, Drawer (screw (3))   (Replaces: 312566)				$ 9.52
20	WP486255		Palnut, 8-32   (Replaces: 308542)				$ 5.54
21	307956		Handle, Drawer		Appelez-nous	-
21	WP912618		Screw, 8d X 3/8 (3)   (Replaces: 312578)				$ 6.98
22	309329		Protector, Drawer		Appelez-nous	-
23	310705		Clip (2)		Appelez-nous	-
24	WP90296		Fastener, Pushnut (2)   (Replaces: 308593)				$ 7.07
