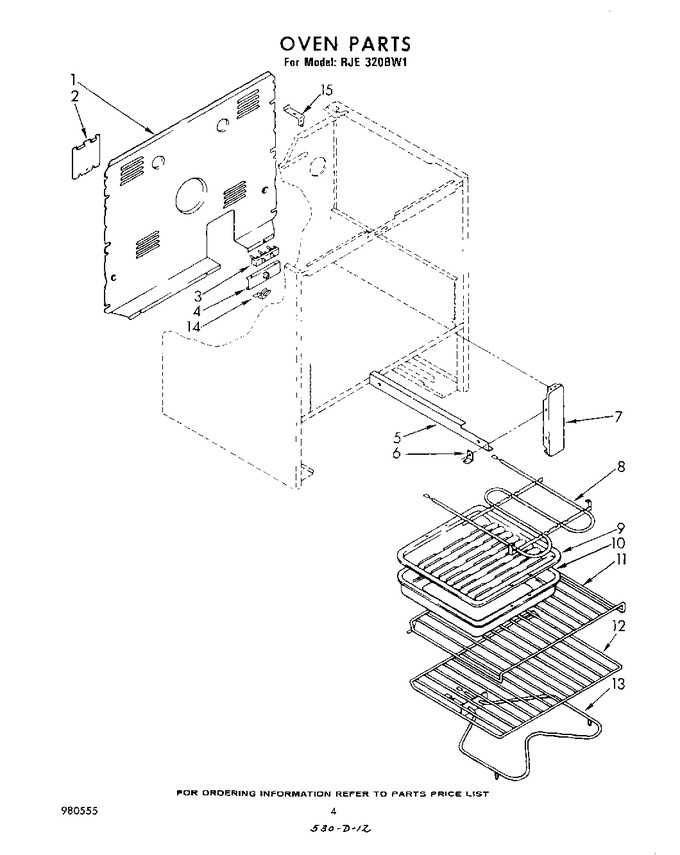

03 - Oven
04 - Literature And Optional
05 - Control Panel
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 1 | 307971 | Cover, Rear |
|
- | |||||
| 2 | 307972 | Cover, Access |
|
- | |||||
| 2 | WP308544 | Screw, 10-24 X 1/2 (Replaces: 308544) |
|
Immediately | $ 6.98 | ||||
| 3 | 98884 | Screw, 10-16 X 1 (2) |
|
- | |||||
| 3 | WP8203546 | Block, Terminal (Replaces: 258076) |
|
Immediately | $ 27.12 | ||||
| 3 | WP112432 | Nut (6) (Replaces: 112432) |
|
$ 7.16 | |||||
| 4 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 4 | 307970 | Bracket, Service |
|
- | |||||
| 5 | 307982 | Rail, R.h. (includes Illus. 6) |
|
- | |||||
| 5 | 307983 | Rail, L.h. (includes Illus. 6) |
|
- | |||||
| 6 | 307748 | Screw, 10a X 1/2 (2) |
|
- | |||||
| 6 | 307979 | Glide, Front (2) |
|
- | |||||
| 7 | 307981 | Bracket, Mounting |
|
- | |||||
| 8 | WP660579 | Unit, Broil (alternate) (Replaces: 311713) |
|
$ 140.80 | |||||
| 8 | 246127 | Unit, Broil (screw, 10-32 X 5/8 (2)) |
|
- | |||||
| 8 | WP660579 | Unit, Broil (alternate) (Replaces: 311714) |
|
$ 140.80 | |||||
| 9 | 4396923 | Rack, Broiler (Replaces: 258171) |
|
Immediately | $ 52.04 | ||||
| 10 | 4396923 | Pan, Broiler (Replaces: 310976) |
|
Immediately | $ 52.04 | ||||
| 11 | 308172 | Rack, Oven (offset) |
|
- | |||||
| 12 | 308173 | Rack, Oven |
|
- | |||||
| 13 | 246127 | Screw, 10-32 X 5/8 (2) |
|
- | |||||
| 13 | WP308180 | Unit, Bake (Replaces: 308180) |
|
$ 96.92 | |||||
| 14 | WP681414 | Screw 10-32 X 1/2 (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 14 | 308498 | Ground Strap |
|
- | |||||
| 15 | 980555 | List, Parts |
|
- | |||||
| 15 | WP681414 | Screw, 10-16 X 1/2 (2) (ground) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 15 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | |||||
| 15 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 15 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 15 | 261890 | Golden Harvest |
|
- | |||||
| 15 | 285365 | Toast |
|
- | |||||
| 15 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 15 | 285006 | Paint, Spray 13 Oz. (black) |
|
Immediately | $ 51.34 | ||||
| 15 | 350942 | Primer (white) (Replaces: 206922) |
|
$ 80.69 | |||||
| 15 | 206925 | Leveler (thinner) (2oz.) |
|
- | |||||
| 15 | 799351 | Thinner (1 Gal.) |
|
- | |||||
| 15 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 15 | 261582 | Grease |
|
- | |||||
| 15 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | ||||
| 15 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | ||||
| 15 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 15 | 312718 | Instructions, Installation |
|
- | |||||
| 15 | 310597 | Guide, Use & Care |
|
- | |||||
| 15 | 308500 | Book, Cooking Guide |
|
- | |||||
| 15 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 15 | 309102 | Bracket, Stand-off (2) |
|
- | |||||
| 15 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 15 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 15 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 15 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 15 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 15 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 15 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 15 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 15 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 15 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 15 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 15 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 15 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 54.25 | |||||
| 15 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 98.33 | |||||
| 15 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 15 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 15 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 105.40 | |||||
| 15 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 15 | 261888 | New Avocado |
|
- | |||||
| 15 | 261886 | Coffee |
|
- | |||||
| 261889 | Xnew Avocado (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | ||||||
| 285368 | Xplatinum (uncut) |
|
- | ||||||
| 261891 | Xgolden Harvest (uncut) |
|
- | ||||||
| 261887 | Xcoffee (uncut) |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 |
