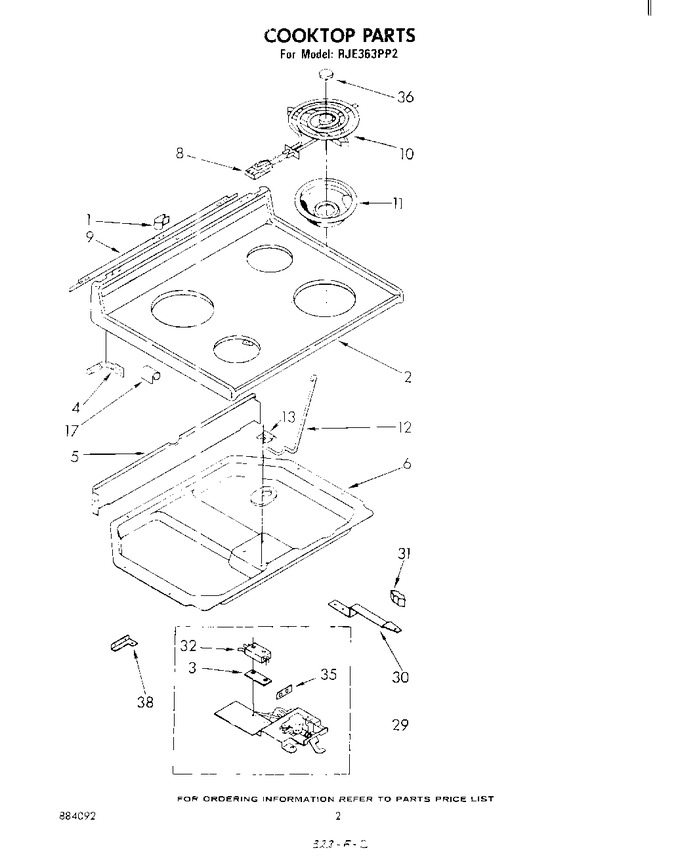

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
1	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
2	309922		Cooktop (chrome)		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
4	307966		Pin, Cooktop (2)		Appelez-nous	-
5	307973		Shield, Wiring		Appelez-nous	-
5	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
6	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.04
6	307929		Burner Box		Appelez-nous	-
8	330031		Receptacle Clip (4)   (Replaces: 258858)			Immediately	$ 14.48
8	WP313808		Screw 6-32 X 1/4 (4)   (Replaces: 311932)				$ 6.84
9	309232		Barrier		Appelez-nous	-
10	WP660533		Unit, Surface (8`` R.f. L.r. (alternate) (includes Illus. 36))   (Replaces: 309216)			Immediately	$ 39.47
10	WP660532		Unit, Surface (6`` L.f. & R.r. (alternate))   (Replaces: 309249)			Immediately	$ 36.90
10	WP660533		Unit, Surface (8`` R.f. & L.r. (alternate))   (Replaces: 309185)			Immediately	$ 39.47
10	WP660532		Unit, Surface (6`` L.f. & R.r. (alternate))   (Replaces: 309191)			Immediately	$ 36.90
11	WPW10196406		Pan (6`` (2))   (Replaces: 308539)			Immediately	$ 12.05
11	W10196405RW		Pan (8`` (2))   (Replaces: 308540)			Immediately	$ 18.70
12	307968		Rod, Cooktop		Appelez-nous	-
13	WP3390631		Screw, 10a X 3/8   (Replaces: 309112)				$ 7.04
13	307967		Retainer, Rod		Appelez-nous	-
17	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
17	307965		Bracket, Cooktop (2)		Appelez-nous	-
29	328585		Latch Assembly		Appelez-nous	-
29	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
30	307976		Handle, Latch		Appelez-nous	-
30	247326		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
30	308422		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
31	WP488627		Screw, 8a X 1/2   (Replaces: 338156)				$ 6.81
31	307977		Knob, Latch		Appelez-nous	-
32	98106		Screw (2)		Appelez-nous	-
32	308185		Switch, Limit		Appelez-nous	-
35	313035		Shield, Terminal		Appelez-nous	-
35	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
36	309195		Medallion		Appelez-nous	-
38	307748		Screw, 10a X 1/2		Appelez-nous	-
38	312320		Shield, Insulation		Appelez-nous	-
