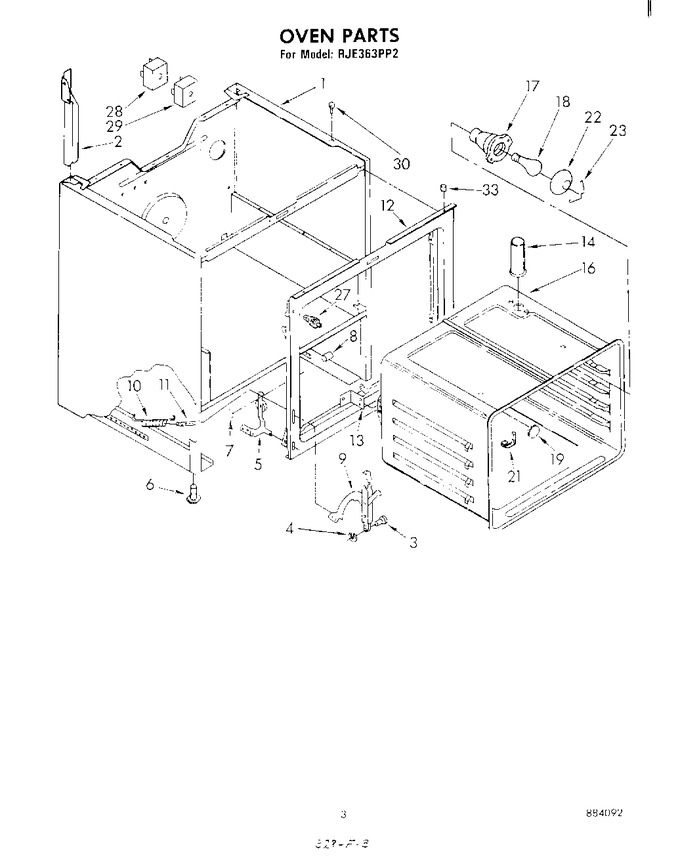

03 - Oven


04 - Door And Drawer


05 - Oven (continued) , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	330092		Main Chassis (platinum)		Appelez-nous	-
2	308132		Support, Channel (l.h.)		Appelez-nous	-
2	308131		Support, Channel (r.h.)		Appelez-nous	-
2	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
3	WP307986		Hinge Pin   (Replaces: 307986)				$ 11.78
4	307594		Ring, Retainer		Appelez-nous	-
5	327890		Hinge (r.h.)		Appelez-nous	-
5	WP681414		Screw, 10-32 (4)   (Replaces: 343631)			Immediately	$ 7.07
5	327891		Hinge (l.h.)		Appelez-nous	-
6	WPW10058460		Foot, Dryer (4)   (Replaces: 312701)			Immediately	$ 7.07
7	308306		Pushnut (2)		Appelez-nous	-
8	307985		Pin, Hinge (2)				$ 29.54
9	329710		Channel, Arm (2)		Appelez-nous	-
10	WP308126		Spring, Oven Door   (Replaces: 308126)				$ 38.15
11	WP308125		Anchor, Spring   (Replaces: 308125)				$ 10.94
12	WP681414		Screw, 10-16 X 1/2 (15)   (Replaces: 343641)			Immediately	$ 7.07
12	327886		Frame, Front		Appelez-nous	-
13	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
13	311220		Bracket, Oven (mounting)		Appelez-nous	-
14	307961		Vent, Oven		Appelez-nous	-
14	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
16	311056		Screw, 10a X 1/2		Appelez-nous	-
16	329002		Oven		Appelez-nous	-
17	308043		Socket, Lamp (screw, 10-12 X 5/8)		Appelez-nous	-
17	307856		Socket, Lamp (alternate)		Appelez-nous	-
17	310208		Socket, Lamp (alternate)			Immediately	$ 36.34
18	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
19	257314		Plug Button		Appelez-nous	-
21	98005642		Clip, Therm Bulb (2)   (Replaces: 258139)			Immediately	$ 74.64
22	308039		Cover, Light		Appelez-nous	-
23	308038		Retainer, Light		Appelez-nous	-
27	310345		Switch, Door				$ 94.86
28	310643		Switch, Broil		Appelez-nous	-
29	310644		Switch, Bake		Appelez-nous	-
30	238614		Bumper (2)				$ 72.68
33	310210		Screw, 8-32 X 5/16 (2)		Appelez-nous	-
33	311909		Locator, Cooktop (2)		Appelez-nous	-
