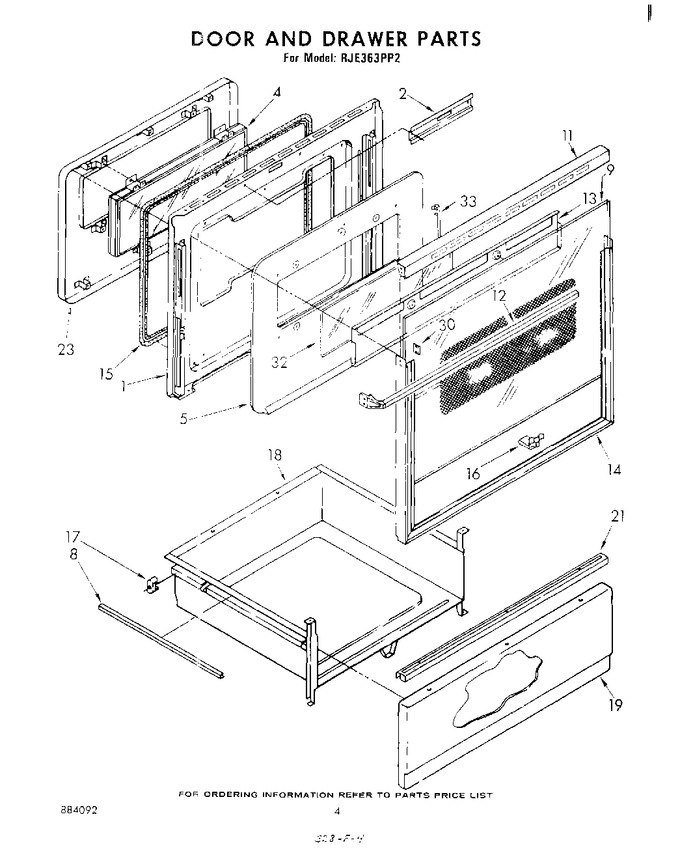

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329694		Liner, Door		Appelez-nous	-
1	307748		Screw, 10a X 1/2 (7)		Appelez-nous	-
1	311056		Screw (2)		Appelez-nous	-
1	WP90296		``j`` Clip (2)   (Replaces: 90296)				$ 7.07
2	311054		Screw (2)		Appelez-nous	-
2	308033		Channel, Latch		Appelez-nous	-
4	307748		Screw, 10a X 1/2 (10)		Appelez-nous	-
4	330038		Window Package		Appelez-nous	-
5	307748		Screw, 10a X 1/2 (8)		Appelez-nous	-
5	308021		Retainer, Insulation		Appelez-nous	-
8	309329		Protector, Drawer (2)		Appelez-nous	-
9	309069		Glass, Outer		Appelez-nous	-
11	310428		Top, Door Frame		Appelez-nous	-
11	307748		Screw, 10a X 1/2 (2) (black)		Appelez-nous	-
12	WP355515		Screw, 8 X 7/8 (4)   (Replaces: 355515)				$ 6.90
12	312722		Handle, Oven Door				$ 118.10
13	309056		Baffle, Heat		Appelez-nous	-
14	310427		Frame, Door		Appelez-nous	-
15	311904		Seal, Fiberglass		Appelez-nous	-
16	310706		Clip, Glass (10)		Appelez-nous	-
17	307980		Glide, Rear (2)		Appelez-nous	-
17	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
18	327887		Drawer, Utility		Appelez-nous	-
19	WP488787		Screw, 8-18 X 1/2 (3)   (Replaces: 312566)				$ 9.52
19	309923		Panel Drawer (black)		Appelez-nous	-
21	WP488627		Screw 8-18 X 1/2 (2)   (Replaces: 313349)				$ 6.81
21	313337		Handle, Drawer		Appelez-nous	-
23	327898		Panel, Inner		Appelez-nous	-
30	311506		Clip (2)		Appelez-nous	-
32	309842		Glass (6.81`` X 18.31``)		Appelez-nous	-
33	309843		Retainer, Glass (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
