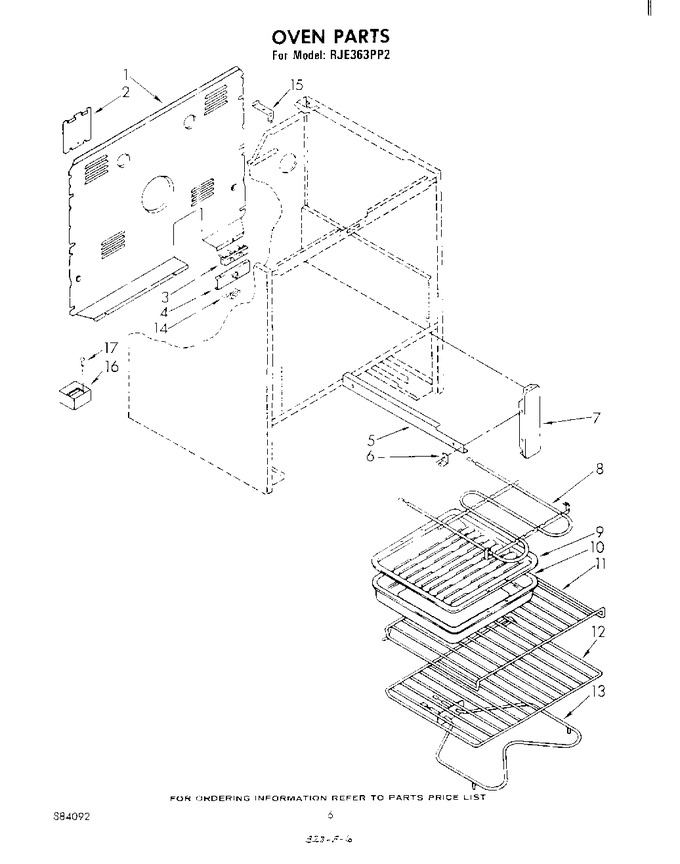

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307971		Cover, Rear		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (7)   (Replaces: 343641)			Immediately	$ 7.07
2	307972		Cover, Access		Appelez-nous	-
2	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
3	WP112432		Nut (6)   (Replaces: 112432)				$ 7.16
3	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 27.12
3	98884		Screw, 10-16 X 1 (2)		Appelez-nous	-
4	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
4	307970		Bracket, Service		Appelez-nous	-
5	307982		Rail, R.h. (includes Illus. 6)		Appelez-nous	-
5	307983		Rail, L.h. (includes Illus. 6)		Appelez-nous	-
6	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
6	307979		Glide, Front (2)		Appelez-nous	-
7	307981		Bracket, Mounting (2)		Appelez-nous	-
8	246127		Unit, Broil (screw, 10-32 X 5/8 (4))		Appelez-nous	-
8	WP660579		Unit, Broil (alternate)   (Replaces: 311713)				$ 140.80
8	WP660579		Unit, Broil (alternate)   (Replaces: 311714)				$ 140.80
9	4396923		Rack, Broiler   (Replaces: 258171)			Immediately	$ 52.04
10	4396923		Pan, Broiler   (Replaces: 310976)			Immediately	$ 52.04
11	308172		Rack, Oven (offset)		Appelez-nous	-
12	308173		Rack, Oven		Appelez-nous	-
13	246127		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
13	WP308180		Unit, Bake   (Replaces: 308180)				$ 96.92
14	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.07
14	308498		Ground Strap		Appelez-nous	-
15	309102		Bracket, Stand-off (2)		Appelez-nous	-
15	WP681414		Screw, 10-16 X 1/2 (2) (ground)   (Replaces: 343641)			Immediately	$ 7.07
16	312804		Block, Concrete (balance)		Appelez-nous	-
17	884092		List, Parts		Appelez-nous	-
17	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
17	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
17	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
17	350942		Primer (white)   (Replaces: 206922)				$ 80.69
17	206925		Leveler (thinner) (2oz.)		Appelez-nous	-
17	799351		Thinner (1 Gal.)		Appelez-nous	-
17	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
17	261810		Touch-up Self-clean (1/2 Pt.)		Appelez-nous	-
17	261582		Grease		Appelez-nous	-
17	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
17	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
17	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
17	312718		Instructions, Installation		Appelez-nous	-
17	310604		Guide, Use & Care		Appelez-nous	-
17	308500		Book, Cooking Guide		Appelez-nous	-
17	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
17	340184		Screw 10-16 X 11/2				$ 12.10
17	16515		Clip				$ 17.60
17	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
17	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
17	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
17	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
17	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
17	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
17	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
17	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
17	242831		Wire (14 Ga. 200 C Red)				$ 342.23
17	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
17	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
17	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
	285368		Xplatinum (uncut)		Appelez-nous	-
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
