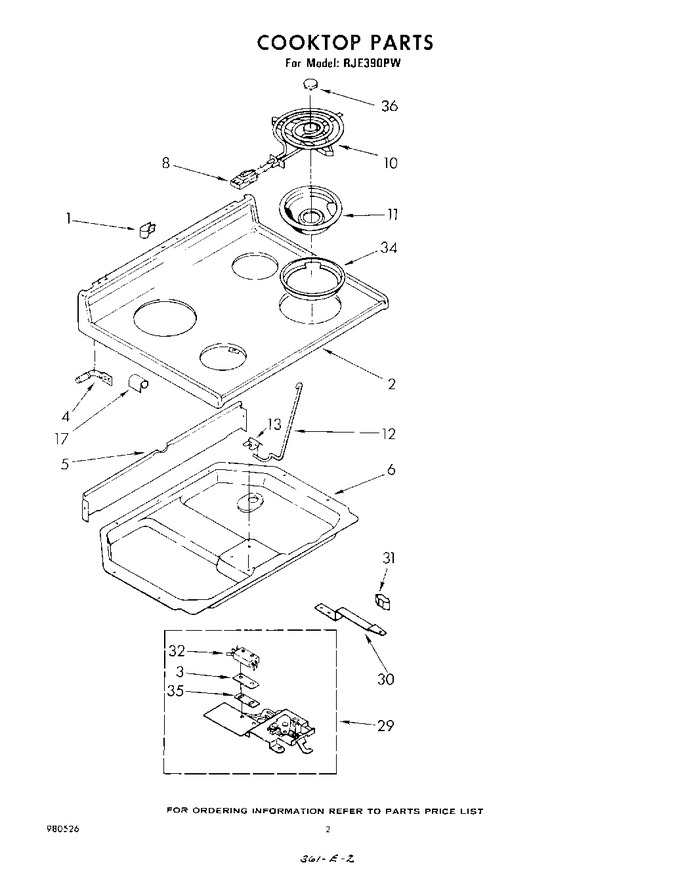

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 6.98
1	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
2	307871		Cooktop (also Order Illus No.37) (almond)		Appelez-nous	-
2	307865		Cooktop (also Order Illus No.37) (new Avocado)		Appelez-nous	-
2	307864		Cooktop (also Order Illus No.37) (coffee)		Appelez-nous	-
2	307863		Cooktop (also Order Illus No.37) (golden Harvest)		Appelez-nous	-
2	307866		Cooktop (also Order Illus No.37) (white)		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	307966		Pin, Cooktop (2)		Appelez-nous	-
4	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 6.98
5	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
5	307973		Shield, Wiring		Appelez-nous	-
5	308581		Screw (hex Head) 10 X 1/2 (2)		Appelez-nous	-
6	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.04
6	311022		Burner Box		Appelez-nous	-
8	330031		Receptacle Clip (4)   (Replaces: 258858)			Immediately	$ 14.48
8	WP486754		Screw, 6-32 X 1/4 (4)   (Replaces: 246119)				$ 6.75
10	WP660532		Unit, Surface (6`` L.f. & R.r. Stillman (alternate))   (Replaces: 309334)			Immediately	$ 36.90
10	WP660533		Unit, Surface (8`` R.f. & L.r. (alternate) (includes Illus. 36))   (Replaces: 309214)			Immediately	$ 39.47
10	WP660533		Unit, Surface (8`` R.f. & L.r. (alternate))   (Replaces: 309340)			Immediately	$ 39.47
10	WP660532		Unit, Surface (6`` L.f. & R.r. (alternate))   (Replaces: 309250)			Immediately	$ 36.90
11	W10291024		Pan (8`` (2))   (Replaces: 306790)			Immediately	$ 49.90
11	W10291024		Pan (6`` (2))   (Replaces: 306789)			Immediately	$ 49.90
12	307968		Rod, Cooktop		Appelez-nous	-
13	307967		Retainer, Rod		Appelez-nous	-
13	WP3390631		Screw, 10a X 3/8   (Replaces: 309112)				$ 7.04
17	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 6.98
17	307965		Bracket, Cooktop (2)		Appelez-nous	-
29	328585		Latch Assembly		Appelez-nous	-
29	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
30	308422		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
30	307976		Handle, Latch		Appelez-nous	-
30	254230		Screw, 10a X 1/2 (2)		Appelez-nous	-
31	307977		Knob, Latch		Appelez-nous	-
31	WP488627		Screw, 8a X 1/2   (Replaces: 338156)				$ 6.81
32	308185		Switch, Limit		Appelez-nous	-
32	98106		Screw (2)		Appelez-nous	-
34	W10854470		Ring, Adapter (6`` (2))   (Replaces: 306785)				$ 81.37
34	W10858781		Adapter Ring 8`` (2)   (Replaces: 306786)				$ 85.64
35	310100		Shield, Terminal		Appelez-nous	-
36	309195		Medallion		Appelez-nous	-
